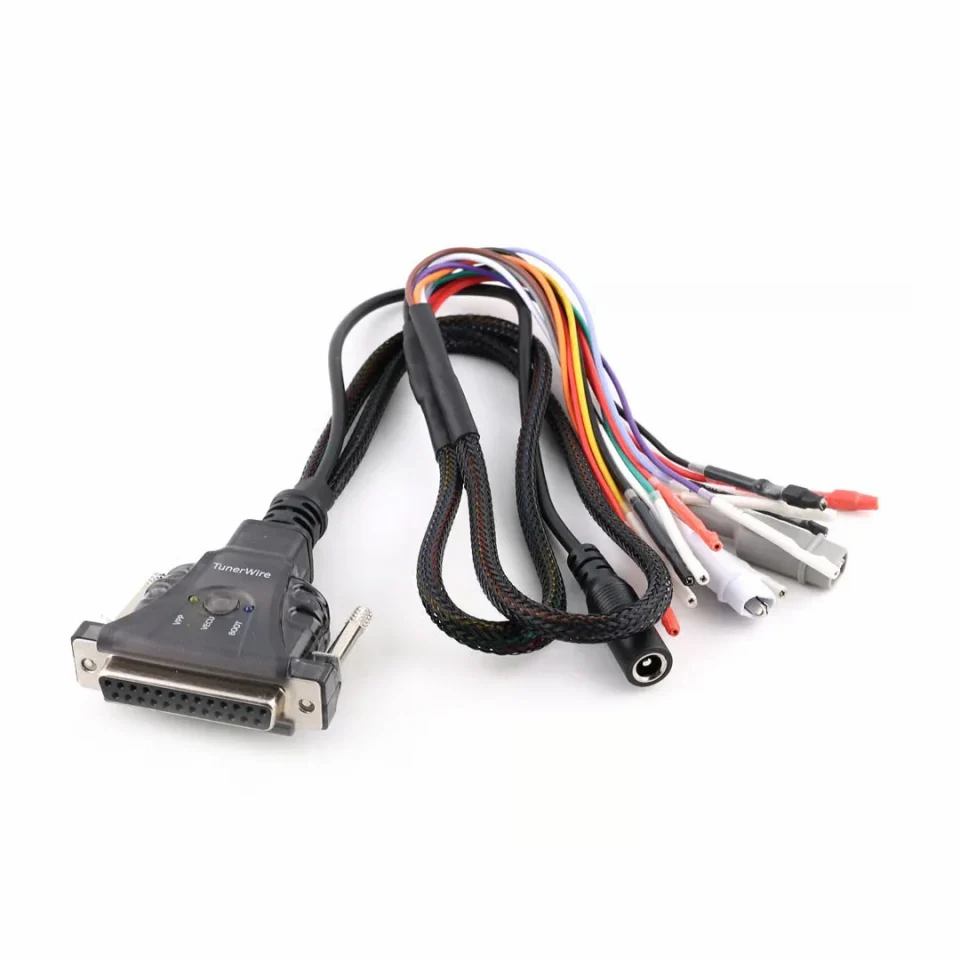

Scanmatik TunerWire TW1 cable
Code: DJ-SCANMATIK-TUNERWIRE-TW1-CABLE
$70.00
Loading
- Delivery Shipped by courier · Delivery policy
- Category Scanmatik
- Questions WhatsApp · Email us
Description
Universal TunerWire TW1 cable for Scanmatik 3 and ECU connection
Features:
- Unique GPT signal conditioning circuit, eliminating the need for external capacitors/resistors for EDC family of ECUs, such as EDC7C32, EDC16CP33, EDC17C49 and many others.
- Tested on whole EDC/Simos family ECUs which are supported by PCMflash, BitBox, and Combiloader.
- ECU power supply override push-button switch with built in VECU line status indicator.
- Increased power-rating of CAN termination resistor ensures stable operation over time: it will not burn out or lose its characteristics if connected wrongly to the power pins of ECU.
- All signal and power lines are protected for short-circuits, overvoltage and reverse polarity.
- Increased power MOSFET switch suitable for ECUs that require high inrush current (up to 8A).
- Convenient shaped BOOT/CNF alligator clips, do not slip or twist during operation.
- Wires are color-coded according to PCMFlash specification
- Terminal tips are made of rigid heat-shrink tubing to prevent bending during connection to ECU pins
- BOOT/CNF and Vpp line status LED indicators
- The bottom stand ensures stability on the table.
- Connectors for ECUs with "large" flat- or round-type terminals are included
Specifications:
- Supply voltage: 12...36V
- Wire length: 0.6 m
- Weight: 0.15kg
Included in the package:
- TunerWire cable
- 7-piece set of connectors for “big” flat pins (Lyra 2.1mm)
- 7-piece set of connectors for “big” round pins (2mm)
