PCMflash USB Dongle
Code: DJ-PCMF-DONGLE
$39.00
Loading
- Delivery Shipped by courier · Delivery policy
- Category PCMFlash
- Questions WhatsApp · Email us
Description
The PCMflash USB dongle is a Guardant security key for modular ECU and TCU reprogramming software.
Package contents
- PCMflash Guardant USB dongle.
Requirements
- The dongle is not sold on its own. A new purchase requires the dongle and at least one software module. Modules will not work without a dongle.
- A PC with the USB dongle connected. The dongle can be used on several computers.
- A J2534-compatible device. The software has been tested with OpenPort 2.0, Mongoose JLR, MongoosePro JLR, MongoosePro MFC, Ford/Mazda VCM 2, Scanmatik 2, Scanmatik 2 Pro, and Scanmatik 3.
- An internet connection for automatic authorization on the first attempt to work with an ECU.
Sold separately
- PCMflash software modules. The software is licensed on a module basis; at least one module must be purchased with a new dongle.
Notes
- The Guardant dongle protects the software against unauthorized access.
- Modules are activated on working days and may not be activated at weekends or on public holidays.
- Modules cannot be deactivated. No refund is possible if the wrong dongle number is provided.
- If the dongle is lost, its modules cannot be transferred. A new dongle and software must be purchased.
- The manufacturer provides the "Pinout diagram".
- Specify the dongle type (small or large) in the order comment. The type in stock is sent by default.

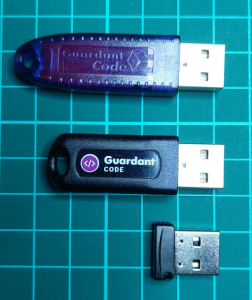

- Dongle types are full-size (top), shortened (middle), and micro (bottom), as shown below. Full-size dongles are no longer available. There is no functional difference between the types. Micro dongles are more easily lost but less prone to damage.
Software functions and available modules
PCMflash reprograms ECUs and TCUs of Volkswagen, Skoda, Ford, Mazda, Mitsubishi, Nissan/Infiniti, Subaru, Honda/Acura, Hyundai/Kia, Renault, Toyota/Lexus and other vehicles. Universal modules include Denso SH705x Bootloader and BSL TriCore. Further packages will be added when writing and testing the tuning firmware is possible.
- Supports flashing backup (vbf) and binary (bin) files.
- Most modules support checksum verification and correction when flashing binary files, as well as VID transfer where needed.
- Supports conversion from VBF/GDS into BIN when the ECU does not support reading.
The following catalog lists the available protocols and features for each software module.
- RD — Reading
- VR — Virtual Reading
- WR — Writing
- CK — Checksums correction/verification
- NC — Checksums not used by ECU
- Ford Focus 3
Ford Focus 3: 1.6L Sigma Ti-VCT (EMS2204) [RD/WR/CK]
Ford Focus 3: 2.0L Duratec GDI Ti-VCT (MED17) [RD/WR/CK]
Ford Focus 3 ST: 2.0L Ecoboost GTDI (MED17) [RD/WR/CK]
Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250) [RD/WR/CK] - Ford Kuga 2, Ford Explorer 2011-
Ford Focus 3: 1.0L Ecoboost 2015+ GTDI [FV6A] (MEDG17) [RD/WR/CK]
Ford Kuga 2: 1.6L Ecoboost GTDI AWD (MEDG17) [RD/WR/CK]
Ford Kuga 2: 2.5L Duratec Ti-VCT [RD/WR/CK]
Ford Explorer 2011-: 3.5L Cyclone V6 Ti-VCT [RD/WR/CK]
Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI (MEDG17) [RD/WR/CK]
Ford Mondeo 5: 1.5L Ecoboost GTDI AT (MEDG17) [RD/WR/CK]
Ford Mondeo 5: 2.0L Ecoboost GTDI (MEDG17) [RD/WR/CK]
Ford Mondeo 5: 2.5L Duratec Ti-VCT [RD/WR/CK]
Ford Mondeo 5: 2.0L Duratec Hybrid (EMS2208) [DS7A] [RD/WR/CK]
Lincoln MKZ: 3.7L Duratec V6 Ti-VCT [DG9A] [RD/WR/CK] - Ford DCM3.5/DCM6.1/SID206
Ford Focus 3: 2.0L DW10C STAGE 5 (DCM3.5) [RD/WR/CK]
Ford Kuga 1: 2.0L DW10C STAGE 5 (DCM3.5) [RD/WR/CK]
Ford Kuga 2: 2.0L DW10C STAGE 5 (DCM3.5) [RD/WR/CK]
Ford Mondeo 4: 2.0L DW10C STAGE 5 (DCM3.5) [RD/WR/CK]
Ford Mondeo 4: 1.8L Lynx, 2.0L DW10C STAGE 4 (SID206) [RD/WR/CK]
Ford Mondeo 5: 2.0L DW10F STAGE 5/6 (DCM6.1) [RD/WR/CK]
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206) [RD/WR/CK] - 1.25–1.6L Gasoline Engines, Ford Fiesta from 2008, Ford Mondeo 4
Ford Fiesta: 1.25L, 1.4L Sigma Ti-VCT (EMS2102) [RD/WR/CK]
Ford Fiesta: 1.6L Sigma Ti-VCT (EMS2101) [RD/WR/CK]
Ford Fiesta: 1.6L Sigma Ti-VCT USA [AE81] (EMS2205) [RD/WR/CK]
Ford Mondeo 4: 1.6L Sigma Ti-VCT (EMS2101) [RD/WR/CK] - 1.6L, 2.0L Gasoline Engines, Ecoboost T-PROT7
Ford Focus 3: 1.6L Ecoboost GTDI (MED17) [RD/WR/CK]
Ford Mondeo 4: 2.0L Ecoboost GTDI (MED17) [RD/WR/CK] - 1.0L, 1.6L Gasoline Engines, Ecoboost T-PROT12
Ford Focus 3: 1.0L Ecoboost GTDI (MED17) [RD/WR/CK]
Ford Kuga 2: 1.6L Ecoboost GTDI FWD (MED17) [RD/WR/CK]
Ford Fiesta: 1.0L Ecoboost GTDI (MED17) [RD/WR/CK] - Ford Transit/Tourneo/Ranger, Land Rover Defender
Ford Transit 2007: 2.2L, 2.4L Diesel (DCU101-108, DCU201-208) [RD/WR/CK]
Ford Transit 2012: 2.2L Diesel (SID208) [RD/WR/CK/UNLOCK]
Land Rover Defender 2012: 2.2L TD4 (SID208) [RD/WR/CK/UNLOCK]
Ford Transit: 2.0L Diesel (SID211) [RD/WR/CK/UNLOCK]
Ford Ranger: 3.2L Diesel (SID209) [WR/CK] writing after unlocking in BSL
Ford Ranger: 3.2L Diesel (SID209/BSL) [RD]
Ford Ranger: 2.5L Duratec (EMS2219) [GB3A] [RD/WR/CK] - Mazda Generation 1 (2004–2008/10)
Mazda: 1.6L Z6 AT (Mazda3 2004+) [RD/WR]
Mazda: 1.6L Z6 MT (Mazda3 2004+) [RD/WR]
Mazda: 1.3L ZJ (Mazda Demio 2003+) [RD/WR/CK]
Mazda: 1.8L, 2.0L, 2.3L L8/LF/L3 (Mazda3/6/CX7 2003+) [RD/WR/CK]
Mazda: 2.0L LF USA (Mazda3 -2009/1MB) [RD/WR/CK]
Mazda: 1.3L N3 (Mazda RX8 2003+) [RD/WR/CK]
Mazda: 1.3L N3 (Mazda RX8 -2008) [RD/WR/CK]
Mazda: 1.3L N3 (Mazda RX8 2009-2012) [RD/WR/CK]
Mazda: Melco TCM (Mazda5/6 512KB) [RD/WR/CK]
Mazda: Aisin TCM (Mazda MX5 512KB) [RD/WR/CK] - Mazda Generation 2 (2008/10–2012/13)
1.3L, 1.5L ZJ/ZY (Mazda2 2011+) [RD/WR/CK]
1.5L ZY (Mazda2 US 2011+) [RD/WR/CK]
1.6L Z6 (Mazda3 2010+) [RD/WR/CK]
1.8L, 2.0L, 2.5L L8/LF/L5 (Mazda6 2008+) [RD/WR/CK]
2.0L, 2.3L, 2.5L LF/L3/L5 (Mazda3/5/CX7 2010+) [RD/WR/CK]
2.0L LF (Mazda Biante 2013+/2MB) [RD/WR/CK] - Mazda Generation 3
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Mitsubishi) [RD/WR/CK]
Mazda: 2.5T SKYACTIV-G PY (Mazda CX9 Mitsubishi) [RD/WR/CK]
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Denso) [RD/WR/CK]
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Denso Crypted) [RD/WR/CK]
Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso) [RD/WR/CK]
Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso Crypted 2MB) [RD/WR/CK]
Mazda: 1.5L, 2.2L SKYACTIV-D S5/SH (Mazda2/3/CX5/6 Denso Crypted 3.75MB) [RD/WR/CK]
Mazda: 1.6L Z6 (Denso) [RD/WR/CK]
Mazda: 1.6L Z6 (Denso Crypted) [RD/WR/CK] - Merged into Module 10
- Honda/Acura CAN-bus
PGM-FI Generic Read-Only [RD]
AT/CVT/DCT Generic Read-Only [RD]
PGM-FI (Keihin SH7058/1MB) [RD/WR/CK]
PGM-FI (Keihin SH72543/2MB) [RD/WR/CK]
PGM-FI (Keihin SH72546/3.75MB) [RD/WR/CK]
PGM-FI (Keihin MPC5566/3MB) [RD/WR/CK]
PGM-FI (Keihin TC1782/2.5MB) [RD/WR/CK]
PGM-FI (Keihin TC275/4MB) [RD/WR/CK]
PGM-FI (Keihin TC277/4MB) [RD/WR/CK]
AT/CVT/DCT (Keihin 512KB) [RD/WR/CK]
AT/CVT/DCT (Keihin 1MB) [RD/WR/CK]
PGM-FI (Matsushita SH7058/1MB) [RD/WR/CK]
PGM-FI (Matsushita SH72543/2MB) [RD/WR/CK]
PGM-FI 2013+ (Matsushita SH72543/2MB) (Test) [RD/WR/CK]
PGM-FI (Panasonic TC179X/4MB) [RD/WR/CK]
AT/CVT/DCT (Matsushita 512KB) (Test) [RD/WR/CK]
PGM-FI (Continental MPC5554/2MB) [RD/WR/CK]
UDCT (Continental TC1782/2.5MB) [WR/CK]
PGM-FI (Hitachi SH7058/1MB) (Test) [RD/WR/CK]
PGM-FI (Hitachi SH7059/1.5MB) (Test) [RD/WR/CK]
PGM-FI (Hitachi SH72543/2MB) [RD/WR/CK]
PGM-FI (Hitachi MPC5554/2MB) (Test) [RD/WR/CK]
AT/CVT/DCT (Hitachi SH72531/1280KB) [RD/WR/CK]
AT/CVT/DCT (Hitachi SH725x3/2048KB) [RD/WR/CK] - Honda/Acura K-Line
Honda: Accord 7 2003-2005 (Matsushita RBA/RBB SH7055/512KB) [VR/WR/CK]
Honda: Accord 7 2006-2007/TSX 2004-2005 (Matsushita RBA/RBB SH7055/512KB) [VR/WR/CK]
Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB) [VR/WR/CK]
Honda: Accord/CR-V/Element/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB) [VR/WR/CK]
Honda: Element/Inspire (Keihin SH7055/512KB) [VR/WR/CK]
Honda: Legend/Acura TL 2005-2007 (Keihin RJA SH7058/1MB) [VR/WR/CK]
Honda: CR-V 2002/2005-2007 (Keihin PPA/PNL SH7058/1MB) [VR/WR/CK]
Honda: Fit/Jazz/Airwave 2001-2007 (Keihin OKI ML66Q592/192KB) [VR/WR/CK]
Acura: MDX 2003-2007 (Motorola RDJ SH7055/512KB) [VR/WR/CK]
Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K) [VR/WR/CK] - 1.6L, 2.0L, 2.3L, 2.5L Gasoline Engines, Ford Mondeo 4
Ford Mondeo 4: 1.6L Sigma Ti-VCT (EMS2101) [RD/WR/CK]
Ford Mondeo 4: 2.0L Duratec HE (ESU312 Galaxy/S-Max 2006) [RD/WR/CK]
Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412/415) [RD/WR/CK]
Ford Mondeo 4: 2.5L Duratec I5 (ME9.0) [WR/CK] - Nissan/Infiniti K-Line
EFI SH705415N (Hitachi SH7054/384KB) [RD/WR/CK]
EFI SH705507N (UJ/Hitachi SH7055/512KB) [RD/WR/CK]
EFI SH705513N (Hitachi SH7055/512KB) [RD/WR/CK]
EFI SH705520N (Hitachi SH7055/512KB) [RD/WR/CK]
EFI SH705821N (Hitachi SH7058/1MB) [RD/WR/CK]
EFI SH705823N (Hitachi SH7058/1MB) [RD/WR/CK]
EFI SH705524N Almera Classic (Hitachi SH7055/512KB) [RD/WR/CK]
EFI SH705826N (Hitachi SH7058/1MB) [RD/WR/CK]
EFI SH705529N Almera Classic (Hitachi SH7055/512KB) [RD/WR/CK] - Subaru Hitachi
Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212920/128KB)[RD/WR/NC]
Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212930/256KB) [RD/WR/NC]
Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212940/384KB)[RD/WR/NC]
Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212970/512KB) [RD/WR/NC]
Forester 2006, Impreza 2006-2007 K-Line (Hitachi WA12212970WWW/512KB) [RD/WR/CK]
Forester 2007-2008, Impreza 2008+, Legacy 2006+ CAN (Hitachi WA12212970WWW/512KB) [RD/WR/CK]
Forester 2009-2011/Legacy 2010-2011 CAN (Hitachi SH7058/1MB) [RD/WR/CK]
Forester 2013+ CAN (Hitachi SH7059/1.5MB) [RD/WR/CK]
Forester 2013+ CAN (Hitachi SH72543/2MB) [RD/WR/CK] - VAG K-Line
1.6L CFNA/CFNB/CLRA 7GV K-Line (Marelli 7GV/832KB) [RD/WR/CK]
1.4L CGGB K-Line (Marelli 7GVE/832KB) [RD/WR/CK]
1.6L BFQ K-Line (Simos 3.3A/512KB) [RD/WR/CK]
1.4L BUD/BXW/CGGA/CGGB K-Line (Marelli 4HV/832KB) [RD/WR/CK]
1.6L BSA/BSE/BSF Calibration K-Line (Simos 7.1/512KB) [RD/WR/CK]
1.6L BSA/BSE/BSF Calibration K-Line (Simos 7PP/1MB) [RD/WR/CK]
1.2L BME/BZG/CGPA Calibration K-Line (Simos 9.1/512KB) [RD/WR/CK] - Nissan/Infiniti CAN-bus
EFI Generic Read-Only (Hitachi) [RD]
EFI SH705519N (Hitachi SH7055/512KB) [RD/WR/CK]
EFI SH705822N, SH705828N (Hitachi SH7058/1MB) [RD/WR/CK]
EFI SH705927N (Hitachi SH7059/1.5MB) [RD/WR/CK]
EFI SH725331N (Hitachi SH72531/1.25MB) [RD/WR/CK]
EFI S7253332N (Hitachi SH72533/2MB) [RD/WR/CK]
Koleos/Latitude 2.5 SH705822N (Hitachi SH7058/1MB) [RD/WR/CK]
Koleos 2 2.5L S7253332N (Hitachi SH72533/2MB) [RD/WR/CK] - Kia/Hyundai
Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13) [RD/WR/CK]
Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21/17.9.21.1) [RD/WR/CK]
Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8) [RD/WR/CK]
Kia/Hyundai: 1.4L, 1.6L (M(G)7.9.8) [WR/CK]
Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7) [WR/CK] - Ford Focus 2/Fiesta/Fusion (automatic VID block transfer)
Ford Focus 2: 1.4L, 1.6L Duratec (SIM28/29) [RD/WR/CK]
Ford Focus 2: 1.8L, 2.0L Duratec HE (ESU121/131/411/418) [RD/WR/CK]
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206) [RD/WR/CK]
Ford Fiesta/Fusion: 1.4L, 1.6L Duratec (SIM210) [RD/WR/CK]
Ford Focus 2 ST: 2.5L Duratec I5 (ME9.0) [RD/WR/CK]
Ford Focus 2 RS: 2.5L Duratec I5 (ME9.0) [WR/CK]
Ford Kuga 1: 2.5L Duratec I5 (ME9.0) [WR/CK] - Ford USA (automatic VID block transfer)
Aston Martin 4.3L, 4.7L, 6.0L 2004-2015 [RD/WR/CK]
Mazda6 3.0L AJ 2003-2005 [RD/WR/CK]
Escape, Explorer, Mazda CX9 -2009 (PCM150F) [RD/WR/CK]
Mustang 2005-2009 (PCM170F) [RD/WR/CK]
Explorer, Mazda CX9 2010-2011/2012 (M799G) [RD/WR/CK]
Focus 2008-2011 (GreenOak/PCM190) [RD/WR/CK]
Escape, Mariner, Tribute 2009-2011 (9L8A) [RD/WR/CK]
Escape 2.5L 2010 PHEV (GreenOak/AM6A/2MB) [RD/WR/CK]
Ford F350 6.0L (BlackOak/PCM122/448KB) [RD/WR/CK]
Expedition, Navigator 5.4L (Bosch ME9.8/2048KB) [RD/WR/CK]
F-150 5.4L (Bosch MEG9.8.1/2536KB) [RD/WR/CK] - Renault
Valeo V40/V42 (SH7058/1024KB) [RD/WR/CK]
Sagem 3000 (SH7055/512KB) [RD/WR/CK]
EMS3110 (TC1766/1504KB) [RD/WR/CK]
Logan, Sandero, Fluence, Megane, Almera EMS3120 (TC1738/2048KB) [RD/WR/CK]
Duster, X-Ray EMS3125 (TC1782/2560KB) [RD/WR/CK]
Clio 4 1.6T EMS3150 (TC1767/2048KB) [RD/WR/CK]
Juke 1.2T EMS3155 (TC1782/2560KB) [RD/WR/CK] - Subaru Denso
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055/512KB) [RD/WR/CK]
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055S/512KB) [RD/WR/CK]
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7058/1MB) [RD/WR/CK]
2.5L, 3.0L, 2.0T, 2.5T Denso 2007+ CAN-bus (SH7058S/1MB) [RD/WR/CK]
2.0L, 2.5L, 3.0L, BRZ Denso 2013+ CAN-bus (SH72531/1.25MB) [RD/WR/CK]
1.6L, 2.0L DI Denso 2018-2021 CAN-bus (1N83M/1.5MB) [RD/WR/CK]
Forester 2.5L DI Denso 2018-2021 CAN-bus (1N83M/4MB) [RD/WR/CK]
Outback/Legacy 2.5L DI Denso 2019-2021 CAN-bus (1N83M/4MB) [RD/WR/CK]
2.0L Denso Diesel Euro 4 CAN-bus (SH7058S/1MB) [RD/WR/CK]
2.0L Denso Diesel Euro 5 CAN-bus (SH7059/1.5MB) [RD/WR/CK]
2.0L Denso Diesel Euro 6 CAN-bus (SH72543/2MB) [RD/WR/CK] - Mitsubishi CAN-bus
MH Generic Read-Only [RD]
Colt MT (MH8304F/512KB) [RD/WR/CK]
Colt AT (MH8304F/768KB) [RD/WR/CK]
Colt RallyArt 1.5T (MH8104F/512KB) [RD/WR/CK]
Galant 9 2.4L (2005-) (MH8304F/768KB) [RD/WR/CK]
Pajero MT (2007-) (MH8302F/512KB) [RD/WR/CK]
Pajero AT (2007-) (MH8304F/768KB) [RD/WR/CK]
Pajero Sport (2010-) (MH8106F/1MB) [RD/WR/CK]
L200 2.4L MT (2008-) (MH8302F/512KB) [RD/WR/CK]
Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F/512KB) [RD/WR/CK]
ASX (-2013), Lancer X 1.6/1.8/2.0L, Outlander XL (MH8106F/1MB) [RD/WR/CK]
ASX (2013-), Mirage, Outlander 3 (2013-) (MH8115F/1.25MB) [RD/WR/CK]
Eclipse Cross (2018-) (MH8601/4MB) [RD/WR/CK]
Expander (2018-) (MH8611/2MB) [RD/WR/CK]
Outlander 2.4L (Delphi SPC563M/1.5MB) [RD/WR/CK] - Renault/Nissan dCi
1.5L dCi Delphi DCM 1.2 (ST10/512KB) [RD/WR/CK]
1.5L dCi Delphi DCM 3.4 (SH7059/1536KB) [RD/WR/CK]
1.5L dCi SID 301/303/304 (MPC562/2MB) [RD/WR/CK]
1.5L dCi SID 305/306 (TC1766/1504KB) [RD/WR/CK]
1.5L dCi SID 307 (TC1767/2MB) [RD/WR/CK]
2.3L dCi SID 309 (TC1767/2MB) [RD/WR/CK]
Nissan Juke 1.5L dCi SID 310 (TC1791/3MB) [RD/WR/CK] - Mitsubishi Diesel CAN-bus
Denso Diesel (SH7058/SH7058S/1MB SH7059/1.5MB SH72543/2MB) [RD/WR/CK] - Nissan CAN-bus Generation 2
EFI SH72533 Gen 2 (2014+) Calibration (Hitachi SH72533/2MB) [RD/WR/CK]
Renault Samsung 1.6T (Hitachi SH72533/2MB) [RD/WR/CK] - VAZ/UAZ
Priora, Kalina 1.6L/16V, Niva 1.7L (M(E)17.9.7) [RD/WR/CK]
Patriot/Hunter/Bukhanka 2.7L (M(E)17.9.7) [RD/WR/CK] - Ford PWM
A Ford VCM2 or Scanmatik 2 Pro adapter is required for operation!
Mondeo 3 1.8L, 2.0L, 2.5L, 3.0L Duratec HE (LEVANTA) [RD/WR/CK]
EEC-V 216K (EEC-V) [RD/WR/CK]
3.0L, 4.0L, 4.6L Duratec V6/V8 (PCM150) [RD/WR/CK]
1.8L, 2.0L, 2.2L Duratorq TDCi (Visteon) [RD/WR]
1.8L, 2.0L, 2.2L Duratorq TDCi (Delphi) [RD/WR/CK]
Jaguar X 2.2L Duratorq TDCi DPF (Delphi) [9X43] [RD/WR/CK] - Kia/Hyundai SIM2K
2.0L, 2.4L (SIM2K-140) [RD/WR/CK]
2.0L, 2.5L (SIM2K-D160) [RD/WR/CK]
2.0L, 2.4L (SIM2K-141/142/341) [RD/WR/CK]
2.0L (SIM2K-C201) [RD/WR/CK]
2.0L, 2.0T (SIM2K-240/241/242/245) [RD/WR/CK] - Mitsubishi K-Line
K-Line/Bootloader (MH720xF/MH810xF/MH820xF/MH830xF/MH8115) [RD/WR/CK] - Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017
Ford Fiesta: 1.0L Ecoboost GTDI [C1BA] (MED17) [RD/WR/CK]
Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI [DA6A] (MED17) [RD/WR/CK]
Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI [FV6A] (EMS2510/EMS2511) [RD/WR/CK]
Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI [FV6A] (EMS2510/EMS2511) [RD/WR/CK]
Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT (2016) [RD/WR/CK]
Ford Mondeo 5: 1.5L Ecoboost GTDI MT (MED17) [RD/WR/CK]
Ford Kuga 2: 2.5L Duratec Ti-VCT MY2017 [GV6A] (EMS24XX) [RD/WR/CK]
Ford Kuga 3: 2.5L Duratec Hybrid [LV4A] (EMS2701) [RD/WR/CK] - Ford EcoSport/Fiesta 2015+
2.0L Duratec HE (IAW 7GFR.HR) [RD/WR/CK]
1.6L Sigma Ti-VCT (EMS2211) [RD/WR/CK]
1.6L Sigma Ti-VCT USA [C1BA] (EMS2214) [RD/WR/CK]
1.6L Sigma Ti-VCT China [FD8A] (EMS2215) [RD/WR/CK] - Kia/Hyundai EDC15/EDC16
2.0L, 2.5L CRDI K-Line (EDC15C7) [RD/WR/CK]
2.0L, 2.2L, 2.5L CRDI (EDC16C39) [WR/CK]
2.0L, 2.2L, 2.5L CRDI K-Line Calibration (EDC16C39) [RD/WR/CK]
3.0L CRDI (EDC16CP34) [WR/CK]
3.0L CRDI K-Line Calibration (EDC16CP34) [RD/WR/CK] - Toyota/Lexus/Scion/Hino
76F0038/39/40/70/85, MPC565/SH72512/SH72544 CAN-bus [VR/WR/CK]
76F0038/39/40/50/70/85, 70F4019 GearBox CAN-bus [VR/WR/CK]
76F0038/39/40/50/70/85 HV Control CAN-bus [VR/WR/CK]
76F0004/23/38/39/40/70/85, MPC565 K-Line [VR/WR/CK] - Kia/Hyundai EDC17
1.6L, 2.0L CRDI (EDC17C08/TPROT3) [RD/WR/CK]
2.0L, 2.2L CRDI (EDC17CP14/TPROT3) [RD/WR/CK]
2.0L, 2.2L, 3.0L CRDI (EDC17CP14/TPROT11) [RD/WR/CK]
1.6L, 2.0L CRDI (EDC17C53) [RD/WR/CK]
2.0L, 2.2L, 3.0L CRDI (EDC17C57/EDC17CP62) [Unlocked] [RD/WR/CK/UNLOCK] for SB V24, writing is possible after unlocking with module 53 or 71
2.0L, 2.2L, 3.0L AdBlue CRDI (DCU17PC42/DCU17PC43) [RD/WR/CK] writing is possible after unlocking with module 53 or 71 - UAZ EDC16
Patriot/Hunter 2.2L ZMZ 5143.1 (EDC16C39-6.H1) [WR/CK]
Patriot 2.3L Iveco F1A (EDC16C39-5.A3) [RD/WR/CK] - Renault K-Line
Duster 1.6L 2WD EMS3130 (ST10/512KB) [RD/WR/CK]
EMS3132 MT (C167/256KB) [RD/WR/CK]
EMS3134 AT (C167/512KB) [RD/WR/CK]
Sagem 3000 (SH7055/512KB) [RD/WR/CK]
Sirius 35 (C167/512KB) [RD/WR/CK] - VAZ/UAZ ME17.9.71
UAZ: Patriot/Hunter/Bukhanka 2.7L (ME17.9.71) [RD/WR/CK] writing is possible after unlocking
VAZ: Niva 1.7L (ME17.9.71) [RD/WR/CK] writing is possible after unlocking
ME17.9.71 (TC1724/BSL) [RD/UNLOCK] - Kia/Hyundai SIMK
1.8L, 2.0L, 2.7L K-Line (SIMK-41/43) [RD/WR/CK]
2.0L, 2.4L CAN (SIMK-43/SIM2K-47) [RD/WR/CK] - Scania EMS/EDC S6
Scania EMS/EDC S6 250Kbps (MPC555) [RD/WR/CK]
Scania EMS S6 500Kbps (MPC555) [RD/WR/CK] - Denso SH705X Bootloader
SH7055/SH7058(S)/SH7059 FLASH (512KB/1024KB/1536KB) [RD/WR/CK]
Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 FLASH (512KB) [RD/WR]
Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 EEPROM (86) [RD/WR]
Mazda3 Z6 -2009 SH7055/SH7058 EEPROM (56) [RD/WR]
Mitsubishi/Nissan/Subaru Diesel SH7058(S)/SH7059 EEPROM (86) [RD/WR]
Subaru Metal-Case SH7055/SH7058 EEPROM (56) [RD/WR]
Subaru Plastic-Case SH7058 EEPROM (86) [RD/WR]
Subaru Plastic-Case SH7058S EEPROM (56) [RD/WR]
Subaru Plastic-Case SH7058S EEPROM (86) [RD/WR]
Suzuki Liana/Jimny SH7055 EEPROM (56) [RD/WR]
Suzuki SH7055/SH7058 EEPROM (56) [RD/WR]
Suzuki SH7058S EEPROM (56) [RD/WR]
Volvo SH7055/SH7058 EEPROM (56) [RD/WR]
Opel 1.7L CDTI SH7058/SH7059 EEPROM (86) [RD/WR]
Trucks SH7058(S)/SH7059 EEPROM (25A320/640/128) [RD/WR] - JLR
Discovery 3 2.7L TDV6 (SID201/SID204) [RD/WR/CK]
Range Rover 3.6L TDV8 (SID203) [RD/WR/CK]
Range Rover 2010+ 3.6L TDV8 (SID203) [RD/WR/CK]
Jaguar S/XF/XJ (X200/X250/X350) 2.7L TDV6 (SID204) [RD/WR/CK]
Discovery 4 2.7L TDV6 (SID204) [RD/WR/CK]
Territory 2.7L Duratorq V6 (SID204) [RD/WR/CK]
Jaguar/Freelander 2/Evoque/Discovery Sport 2.2L I4 Diesel (EDC17CP42) [RD/WR/CK]
Ford Mondeo 4 2.2L DW12C STAGE 5 (EDC17CP42) [RD/WR/CK]
Freelander 2 2.2L I4 Diesel (EDC16CP39) [RD/WR/CK]
Freelander 2/Evoque 2.0L Ecoboost GTDI (MED17) [RD/WR/CK]
Jaguar XF (X250) 2.0L Ecoboost GTDI (MED17.9.7) [RD/WR/CK]
Jaguar XE/F 2.0L Ingenium GTDI (MED17.9.9) [RD/WR/CK]
Jaguar XJ/Range Rover (X351/L405/L494) 3.0L V6/5.0L V8 SC (MED17.8.31) [RD/WR/CK]
Jaguar XE/XJ/F/Range Rover (X152/X351/X760/X761/L405/L494) 5.0L V8 SC (MED17.8.32) [RD/WR/CK]
Range Rover Velar (L560) 3.0L V6 SC (MED17.8.32) [RD/WR/CK]
Evoque/Discovery Sport/Velar/Defender 2.0L Diesel (MEDC17.9) [RD/WR/CK]
Jaguar/Range Rover 3.0L V6, 4.4L V8 Diesel (EDC17CP55) [RD/WR/CK] - Scania EMS S7/S8/EMD1
Reading EMS S8/EMD1 requires a direct connection to the ECU!
Scania EMS S7 250Kbps (MPC563) [RD/WR/CK]
Scania EMS S8 250Kbps (MPC5566) [RD/WR/CK]
Scania EMS S8/EMD1 500Kbps (MPC5566) [RD/WR/CK] - MB Sprinter 906/909 EDC16CP31
Sprinter (906) 2.2L CDI (EDC16CP31-6) [RD/WR/CK]
Sprinter Classic (909) 2.2L CDI (EDC16CP31-8) [RD/WR/CK]
Dodge Sprinter (906) 3.0L CDI (EDC16CP31-6) [RD/WR/CK] - Toyota/Lexus/Scion/Hino Generation 2
76F0196/198/199/219 CAN-bus [VR/WR/CK]
76F0196/198/199/219 P5-CAN-bus [RD/WR/CK]
76F0199 GearBox P5-CAN-bus [RD/WR/CK] - Mitsubishi Gearbox CAN-bus
CVT Lancer X/ASX 1.8/2.0L, Outlander XL/3 2.0/2.4L (MH8104F/512KB MH8106F/1MB) [RD/WR/CK]
AT Pajero Sport (2010-), Lancer X 1.5/1.6L (MH8102F/512KB) [RD/WR/CK]
AT Outlander XL 3.0L (MH8104F/512KB) [RD/WR/CK]
AT Outlander 3 3.0L (MH8106F/1MB) [RD/WR/CK]
CVT ASX/Outlander 3/Eclipse Cross 1.5T/2.0L/2.4L (MH8115F/1.25MB) [WR/CK]
TC-SST Getrag 6DCT470 [RD/WR/CK]
Getrag 6DCT470 Bootloader (FLASH) [RD/WR/CK]
Getrag 6DCT470 Bootloader (EEPROM) [RD/WR/CK] - VAG ME(D)17 UDS
1.4L, 1.8L TSI (MED17.5/MED17.5.2/MED17.5.5) [VR/WR/CK]
1.0L, 1.2L, 1.4L TSI (MED17.5.21/MED17.5.25/MED17.1.27) [VR/WR/CK]
1.0L, 1.6L MPI (ME17.5.20/ME17.5.24/ME17.5.26) [VR/WR/CK]
1.4L TSI, 2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1/17.1.1/17.1.10/17.1.61/17.1.62) [VR/WR/CK]
1.4L TSI, 3.6L FSI (MED17.1.6/MED17.1.21) [VR/WR/CK]
5.2L FSI Master/Salve (MED17.1.1) [VR/WR/CK] - Toyota/Lexus/Scion/Hino Generation 2 (Supplement)
A direct connection to the ECU connector is required, along with a boot/bench cable or a "Powerbox for PCMflash" device (or equivalent) for automatic control of power and "boot" pins, and a Scanmatik 2/Pro/3, Mongoose Pro MFC, or Tactrix Openport 2.0 adapter.
76F0196/198/199/219 Bootloader [RD/WR/CK]
76F0196/198/199/219 Bootloader EEPROM [RD/WR]
76F0199 Gearbox Bootloader [RD/WR/CK]
76F0199 Gearbox Bootloader EEPROM [RD/WR]
76F0196/198 HV Control Bootloader [RD/WR/CK] - VAG EDC17 UDS
2.0L, 3.0L TDI (EDC17CP04/EDC17CP14/EDC17CP20/EDC17CP24) [VR/WR/CK]
3.0L TDI (EDC17CP44) [VR/WR/CK]
4.2L TDI (EDC17CP24/EDC17CP44) [VR/WR/CK]
2.0L TDI (EDC17C46) [VR/WR/CK]
2.0L TDI (EDC17C54) [VR/WR/CK]
1.6L, 2.0L TDI (EDC17C64) [VR/WR/CK]
2.0L TDI (EDC17C74) [VR/WR/CK]
3.0L TDI (EDC17CP54) [VR/WR/CK] - China
Great Wall/Lifan ME17 (ME17.8.8) [RD/WR/CK]
Chery 1.5L/1.6L/2.0L D4G15/E4G16/SQR484 (ME17.8.8) [RD/WR/CK]
Chery 2.0L D4G20 (ME17.8.8) [RD/WR/CK]
Chery 1.5L/1.5T/2.0T E4G15C/E4T15C/D4T20 (ME17U6) [RD/WR/CK]
Chery 1.6T F4J16 (MED17.8.10) [RD/WR/CK]
Jetour 1.6T F4J16 (MED17.8.10) [RD/WR/CK]
GAC 1.5T/2.0T 4A15M1/4B20M1 (ME17.8.8.1) [RD/WR/CK]
GAC 1.5T 4A15J1 (ME17U6/UP6.0) [RD/WR/CK]
GAC 1.5T 4A15J1 (MED17.8.10) [RD/WR/CK]
Great Wall/Haval MED17 (MED17.8.10) [RD/WR/CK]
Geely ME17 (ME17.8.8.1) [RD/WR/CK] reading requires a direct connection to the ECU connector
Geely 1.8T MED17 (MED17.8.10/TC1728) [RD/WR/CK]
Geely 1.5T MED17 (MED17.8.10/TC1782) [RD/WR/CK]
MG MED17 (MED17.8.10) [RD/WR/CK]
SGMW 1.5L B15 (ME17U6/ECU6.1) [RD/WR/CK]
BAIC 2.0T (Delphi MT62.1) [RD/WR/CK]
BAIC 2.4T 4K22D4T (Delphi MT62.1U) [RD/WR/CK]
BAIC 2.0T (Delphi MT95.1) [RD/WR/CK]
Chevrolet 1.5L Aveo/Sail 3 (ME17.8.8) [RD/WR/CK]
Changan 1.5L (Delphi MT62.1) [RD/WR/CK]
Changan CS35PLUS 1.6L, Eado 1.5T (Delphi MT92.1) [RD/WR/CK]
Changan CS75PLUS 1.5T (Delphi MT92.1E) [RD/WR/CK]
Changan 1.5T (Delphi MT95.1/PD06) [RD/WR/CK]
Changan 1.5T CAN-FD (Delphi PD05/PD08) [RD/WR/CK]
Changfeng 1.5L (Delphi MT22.3) [RD/WR/CK]
Changfeng 2.0T (Delphi MT62.1) [RD/WR/CK]
Chevrolet S10 2.4L (Delphi MT22.3) [RD/WR/CK]
Chery 1.5L (Delphi MT22.3) [RD/WR/CK]
Chery 1.6L (Delphi MT62.1) [RD/WR/CK]
Chery 1.6L E4G16C CNG (Delphi MT62.3) [RD/WR/CK]
Chery 1.5T E4T15C PHEV (Delphi MT62.3) [RD/WR/CK]
Dayun 2.4T 4K22D4T (Delphi MT62.1U) [RD/WR/CK]
Dongfeng 2.0T (Delphi MT92) [RD/WR/CK]
Dongfeng/Fengon 2.0L (Delphi MT62/MT62.1) [RD/WR/CK]
Dongfeng/Fengon 1.5T (Delphi MT62.3) [RD/WR/CK]
Dongfeng/Fengon 1.8L (Delphi MT22.3) [RD/WR/CK]
Dongfeng/Fengshen 1.5T (Delphi MT62.1) [RD/WR/CK]
Dongfeng/Fengshen 1.5T (Delphi MT62.1U) [RD/WR/CK]
Dongfeng/Fengshen 1.5T (Delphi MT62.3) [RD/WR/CK]
Dongfeng/Fengxing 2.0L (Delphi MT62.1) [RD/WR/CK]
Dongfeng/Fengxing 1.6T (Delphi MT92.1) [RD/WR/CK]
Dongfeng/Nazhijie 1.8T (Delphi MT62.1) [RD/WR/CK]
Dongfeng/Oting 2.4L (Delphi MT62.1U) [RD/WR/CK]
Dongfeng/Oting 1.8T (Delphi MT92.1) [RD/WR/CK]
Dongfeng/Oting 2.0T (Delphi MT95.1) [RD/WR/CK]
Foton 2.4L (Delphi MT62.1U) [RD/WR/CK]
Foton 2.0L (Delphi MT95.1) [RD/WR/CK]
GAC 2.0T 4B20J1D (Delphi MT92.1) [RD/WR/CK]
GAC 2.0T 4B20J1D (Delphi MT95.1) [RD/WR/CK]
Geely/Great Wall/LuxGen MT80 K-Line [RD/WR/CK]
Geely/Great Wall/LuxGen MT80 CAN-bus [RD/WR/CK]
Great Wall 2.4L (Delphi MT62.1U) [RD/WR/CK]
Great Wall/Haval 1.5T, 2.0T (Delphi MT92/MT92.1) [RD/WR/CK]
Great Wall/Tank 3.0T Master/Slave (Delphi MT95.1) [RD/WR/NC]
Huanghai 2.4T (Delphi MT62.1) [RD/WR/CK]
Isuzu 2.0T 4K21D4T (Delphi MT62.1G) [RD/WR/CK]
JAC 1.6L (Delphi MT22.3) [RD/WR/CK]
JAC 1.5T (Delphi MT62.1) [RD/WR/CK]
JAC 1.5T (Delphi MT92.1E) [RD/WR/CK]
Jinbei 2.0L 1TZS (Delphi MT62.1) [RD/WR/CK]
Jinbei 1.6L SWDC16M (Delphi MT62.1U) [RD/WR/CK]
Joylong 2.0L (Delphi MT62.1G) [RD/WR/CK]
Junma/Traum 1.5T SFG15T (Delphi MT62.1) [RD/WR/CK]
Lifan 1.8L (Delphi MT22.3) [RD/WR/CK]
Lixiang 1.5T (Delphi MT92.1E) [Test] [RD/WR/CK]
Nanjun 1.5L DK15C (Delphi MT62.1) [RD/WR/CK]
SAIC 2.4L 4G69S4N (Delphi MT22.3) [RD/WR/CK]
SAIC 2.0L 1TZH (Delphi MT62.3) [RD/WR/CK]
SGMW 1.5T 280T (Delphi MT92.1) [RD/WR/CK]
Sharmax (Delphi MT62.3) [Test] [RD/WR/CK]
Southeast 1.5L (Delphi MT22.3) [RD/WR/CK]
Southeast 1.5T (Delphi MT62.1) [RD/WR/CK]
Yema 1.5L (Delphi MT22.3) [RD/WR/CK]
Zotye 2.0T (Delphi MT62.1) [RD/WR/CK] - Kia/Hyundai Delphi MT38/86
2.7L, 3.3L, 3.8L (MT38/CAN) [WR/CK]
2.7L, 3.3L (MT38/K-Line) [RD/WR/CK]
2.7L, 3.3L, 3.8L (MT38/BSL) [RD/WR/CK]
3.0L, 3.3L, 3.8L, 5.0L (MT86) [RD/WR/CK] - Infineon Tricore BSL
TC1762/TC1766 MICRO (1504KB)
TC1762/TC1766 EEPROM (32KB)
TC1792/TC1796 MICRO (2048KB)
TC1796 MICRO+EXT (4096KB/6144KB)
TC1796 EXT (2048KB/4096KB)
TC1792 EEPROM (64KB)
TC1796 EEPROM (128KB)
TC1736 MICRO (1024KB)
TC1736 EEPROM (32KB)
TC1738/TC1767 MICRO (2048KB)
TC1738/TC1767 EEPROM (64KB)
TC1797 MICRO (4096KB)
TC1797 EEPROM (64KB)
TC1797 MICRO+EXT (6144KB/8192KB)
TC1797 EXT (2048KB/4096KB)
TC1724/TC1728 MICRO (1536KB)
TC1724/TC1728 EEPROM (64KB)
TC1782/TC1784 MICRO (2560KB)
TC1782/TC1784 EEPROM (128KB)
TC1791/TC1793 MICRO (4096KB)
TC1791/TC1793 EEPROM (192KB)
TC1791/TC1793 MICRO+EXT (6144KB/8192KB)
TC1791/TC1793 EXT (2048KB/4096KB)
Delphi MT86 EEPROM (16KB)
Delphi CRD3.1 EEPROM (32KB)
EDC17C06 EEPROM (8KB)
EDC17CV41 EEPROM (32KB) - Delphi DCM3.7/AP (SH72513/72543/72544)
Kia/Hyundai 2.5L CRDI (DCM3.7AP) [RD/WR/CK]
Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7) [RD/WR/CK]
SsangYong 2.0L XDI (DCM3.7AP) [RD/WR/CK]
VAG 1.2L TDI (DCM3.7) [RD/WR/CK]
Great Wall/Haval 2.0L TD (DCM3.7) [RD/WR/CK]
Bobcat/Kioti/McCormick (DCM3.7AP) [RD/WR/CK]
JCB 4.4L TD (DCM3.3+) [RD/WR/CK] - Kia/Hyundai Kefico/Denso
Kia/Hyundai 2.5L CRDI (SH72546) [RD/WR/CK]
Hyundai Euro 5 (Denso SH7058S) [RD/WR/CK]
Hyundai Euro 6 (Denso SH72543/SH72546) [RD/WR/CK] - Ford SID807EVO/EDC17C10/EDC17C70
Ford Focus 3: 1.6L DV6C (SID807EVO)[RD/WR/CK/UNLOCK]
Ford Mondeo 4: 1.6L DV6C (SID807EVO)[RD/WR/CK/UNLOCK]
Ford Focus 3: 1.6L ECOnetic 2012+ (EDC17C10) [RD/WR/CK]
Ford Fiesta: 1.4L, 1.6L DV4/DV6 2010-2011 (EDC17C10) [RD/WR/CK]
Ford Fiesta: 1.5L, 1.6L DV5/DV6 2012+ (EDC17C10) [RD/WR/CK]
Ford Focus 3: 1.5L DV5F (EDC17C70) [RD/WR/CK]
Ford Fiesta: 1.5L DV5F (EDC17C70) [RD/WR/CK] - SIMOS 8/10/11/12/PCR2.1
2.8L V6 FSI (SIMOS8.1) [RD/WR/CK]
3.2L V6 FSI (SIMOS8.2) [RD/WR/CK]
3.0L V6 TFSI (SIMOS8.3) [VR/WR/CK]
3.0L V6 TFSI (SIMOS8.4) [VR/WR/CK]
3.0L V6 TFSI (SIMOS8.5) [VR/WR/CK]
2.8L V6 FSI (SIMOS8.6) [RD/WR/CK] (reading/writing calibrations after unlocking in BSL!)
SIMOS8.6 (EEPROM/UNLOCK/BSL) [RD/WR/UNLOCK] (reading/writing EEPROM, ECU unlocking)
1.2L TSI (SIMOS10) [RD/VR/WR/CK]
1.2L MPI (SIMOS11) [RD/VR/WR/CK]
1.8L, 2.0L TSI (SIMOS12.1/SIMOS12.2) [VR/WR/CK]
1.6L TDI (PCR2.1) [RD/WR/CK] (reading/writing calibrations after unlocking in BSL!)
PCR2.1 (EEPROM/UNLOCK/BSL) [RD/WR/UNLOCK] (reading/writing EEPROM, ECU unlocking)
PCR2.1 Bootloader (FLASH) [RD/WR/CK]
PCR2.1 Bootloader (EEPROM/UNLOCK) [RD/WR/UNLOCK]
SIMOS8.3/8.4/8.5/8.6 Bootloader (FLASH) [RD/WR/CK]
SIMOS8.3/8.4/8.6 Bootloader (EEPROM/UNLOCK) [RD/WR/UNLOCK]
SIMOS12.1/12.2 Bootloader (FLASH) [RD/WR/CK]
SIMOS12.1/12.2 Bootloader (EEPROM) [RD/WR] - Temic TCU
DQ200 (0AM) [VR/WR/CK]
DQ200MQB/G2 (0CW) [RD/VR/WR/CK]
DQ250C (02E) [RD/VR/WR/CK]
DQ250E/F (02E) [VR/WR/CK]
DQ250MQB (0D9) [RD/VR/WR/CK]
DQ400 (0DD) [RD/WR/CK]
DQ500 (0BH/0BT) [RD/WR/CK]
VL300/V30 (01J/0AN) [VR/WR/CK]
VL381/DL382 (0AW/0CK) [VR/WR/CK]
DL501/G2 (0B5) [VR/WR/CK]
DQ200/MQB/G2/DQ400 Bootloader (FLASH) [RD/WR/CK]
DQ200/MQB/G2/DQ400 Bootloader (EEPROM) [RD/WR]
DQ250E/F/MQB Bootloader (FLASH) [RD/WR/CK]
DQ250E/F/MQB Bootloader (EEPROM) [RD/WR]
DQ500 0BH/0BT Bootloader (FLASH) [RD/WR/CK]
DQ500 0BH/0BT Bootloader (EEPROM) [RD/WR]
VL300/V30 BSL (FLASH) [RD/WR/CK]
VL300/V30 BSL (EEPROM) [RD/WR/CK]
VL381 Bootloader (FLASH) [RD/WR/CK]
VL381 Bootloader (EEPROM) [RD/WR]
DL501/G2 Bootloader (FLASH) [RD/WR/CK]
DL501/G2 Bootloader (EEPROM) [RD/WR]
DL382 Bootloader (FLASH) [RD/WR/CK]
DL382 Bootloader (EEPROM) [RD/WR]
Honda UDCT Bootloader (Continental TC1782/FLASH) [RD/WR/CK]
Honda UDCT Bootloader (Continental TC1782/EEPROM) [RD/WR]
DKG436G2 Bootloader (FLASH) [RD/WR]
DKG436G2 Bootloader (EEPROM) [RD/WR]
EDC DC0/DC4 Gen2 (DKG250 Gen2) Bootloader (TC1784/FLASH) [RD/WR]
EDC DC0/DC4 Gen2 (DKG250 Gen2) Bootloader (TC1784/EEPROM) [RD/WR]
VGS-FDCT Bootloader (TC1766/FLASH) [RD/WR]
VGS-FDCT Bootloader (EEPROM) [RD/WR]
VGS2-FDCT Bootloader (TC1784/FLASH) [RD/WR]
VGS2-FDCT Bootloader (TC1784/EEPROM) [RD/WR]
Haval 7DCT450 Bootloader (EAST80.D1 TC265/FLASH) [RD/WR/CK]
Haval 7DCT450 Bootloader (EAST80.D1 TC265/EEPROM) [RD/WR]
Hyundai TAD701/TAD801 D7UF1-2/D7F34-2/D8LF1 Bootloader (TC275/FLASH) [RD/WR/CK]
Hyundai TAD701/TAD801 D7UF1-2/D7F34-2/D8LF1 Bootloader (TC275/EEPROM) [RD/WR] - Renault/Nissan UDS
1.2T EMS3155 UDS (TC1782/2.5MB) [RD/WR/CK]
1.5L dCi SID309 UDS (TC1767/2MB) [RD/WR/CK]
1.5L, 2.3L dCi SID310 UDS (TC1791/3MB) [RD/WR/CK]
1.6L dCi EDC17C84 UDS (TC1782/2.5MB) [RD/WR/CK]
1.6L dCi EDC17C84 UDS (Injectors) [RD/WR]
1.8T, 2.0T Hitachi UDS (RH850/4MB) [RD/WR/CK]
0.66L, 1.6L Hitachi UDS (R7F701205/2MB) [RD/WR/CK]
1.2L Hitachi BEM548 UDS (R7F701216/4MB) [RD/WR/CK]
1.5T Delphi MT92.1E UDS (TC265/2.5MB) [RD/WR/CK] - Citroen/Peugeot (PSA) SID208
Citroen/Peugeot 2.2L HDi (SID208) [RD/WR/CK] writing is possible after unlocking
Citroen/Peugeot 2.2L HDi (SID208/BSL) [RD/UNLOCK]
Citroen/Peugeot 2.2L HDi (DCU 102) [RD/WR/CK] reading requires a direct connection - Kia/Hyundai CPGDSH/CPEGD
1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS) [RD/WR/CK]
1.4T, 1.6L (CPEGD2.20.3/CPEGD2.20.4/UDS) [RD/WR/CK/UNLOCK]
1.0L, 1.2L (CPEGP2.10.1/CPGPSH2.14.1/UDS) [RD/WR/CK/UNLOCK]
1.2L, 1.6L, 1.5T, 1.6T (CPEGD3.20.1/CPEGP3.20.2/CPGPSH3.24.1/UDS) [RD/WR/CK]
1.2L, 1.6L, 1.5T, 1.6T EEPROM (CPEGD3.20.1/CPEGP3.20.2/CPGPSH3.24.1/CPGPSH3.26.2/UDS) [RD/WR]
1.5L, 1.6L (CPGPSH3.26.1/UDS) [RD/WR/CK]
1.5L, 1.6L EEPROM (CPGPSH3.26.1/UDS) [RD/WR] - Ford/Getrag 6DCT450
PowerShift TCM (6DCT450) [RD/WR]
PowerShift 6DCT450 Bootloader (FLASH) [RD/WR]
PowerShift 6DCT450 Bootloader (EEPROM) [RD/WR]
PowerShift 6DCT451 TCM GGDS [RD/WR/CK]
PowerShift 6DCT451 [XPS6 Gen3] Bootloader (FLASH) [RD/WR]
PowerShift 6DCT451 [XPS6 Gen3] Bootloader (EEPROM) [RD/WR] - Renault DC4
EDC DC4 Gearbox (TC1766/1506KB) [RD/WR/CK]
EDC DC0/DC4 Gen2 (DKG250 Gen2) (TC1784/2560KB) [RD/WR] - Mitsubishi Fuso Canter
Fuso Canter (EDC7C4-6/EDC16C31) [RD/WR/CK]
Fuso Canter Euro 5 CAN-bus (EDC17CP15) [RD/WR/CK]
Fuso Canter Euro 5 CAN-bus (EDC17CP52) [RD/WR/CK] - VAG ME(D)17/EDC17 CAN TP2.0/K-Line
EDC17U01/U05/CP04/CP14 K-Line [VR/WR/CK]
ME17/MED17/EDC17 CAN TP2.0 [VR/WR/CK] - Honda Bosch
PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB) [WR/CK]
PGM-FI (Bosch EDC17CP50/4MB) [Unlocked] [WR/CK] writing is possible after unlocking with module 53 or 71
PGM-FI (Bosch EDC17C58/4MB) [Unlocked] [WR/CK] writing is possible after unlocking with module 53 or 71
PGM-FI (Bosch EDC17C72/2.5MB) [Unlocked] [WR/CK] writing is possible after unlocking with module 53 or 71
PGM-FI (Bosch MED17.9.3/4MB) [Unlocked] [WR/CK] writing is possible after unlocking with module 53 or 71
PGM-FI (Bosch ME17.9.55/1.5MB) [Unlocked] [WR/CK] writing is possible after unlocking with module 53 or 71 - Nissan Bosch ME7
EFI ME7.9.20 Calibration (Bosch ST10F275 EXT/512KB) [WR/CK] - JLR Denso
Jaguar XF/XJ/XK (X250/X350/X351/X150) 3.0L V6, 3.5L V8, 4.2L V8/SC (Denso) [RD/WR/CK]
Range Rover/Sport/Discovery 3 4.0L V6, 4.4L V8, 4.2L V8/SC (Denso) [RD/WR/CK]
Freelander 2 (L359) 3.2L V6 (Denso) [RD/WR/CK]
Range Rover (L320/L322/L319), Jaguar (X150/X250/X351) 5.0L V8/SC (Denso)[RD/WR/CK]
Volvo XC90 29bit 2006-2010 3.2L (Denso) [Test] [RD/WR/CK]
Volvo XC90 29bit 2006-2010 4.4L (Denso) [Test] [RD/WR/CK] - Mercedes-Benz MED17/EDC17
MED17.7.1/17.7.2/17.7.3/17.7.3.1/17.7.5 [VR/WR/CK]
EDC17CP01/CP10 [RD/WR/CK] only ECUs with external flash memory
EDC17C43/CP46/CP57/CP60/C66 [RD/WR/CK]
M156/M272/M273 (ME9.7) [RD/WR/CK]
Aston Martin M177 (MED17.7.5) [WR/CK] - Jeep EDC17
2.8L CRDI (EDC17CP27)[RD/WR/CK]
3.0L CRDI (EDC17C49/C79) [RD/WR/CK] reading may require a direct connection to the ECU - Bosch MEDC17 Bootloader
Operation requires a direct connection to the ECU connector and a Scanmatik 2/Pro/3 adapter.
MEDC17 (TC1762/1766/1792/1796) FLASH [RD/WR/CK]
MEDC17 (TC1762/1766/1792/1796) EEPROM [RD/WR]
MEDC17 (TC1724/1728/1767/1782/1784/1797) FLASH [RD/WR/CK]
MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM [RD/WR]
MEDC17 (TC1791/1793) FLASH [RD/WR/CK]
MEDC17 (TC1791/1793) EEPROM [RD/WR]
MEDC17 BSL PASSWORD [RD]
EDC17C06 EEPROM (8KB) [RD/WR]
EDC17CV41 EEPROM (32KB) [RD/WR]
MEV17.2 EXT EEPROM (8KB) [RD/WR] - Mazda Gen 4
1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Mitsubishi) [PYFA] [RD/WR/CK]
1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Denso) [PYFB] [RD/WR/CK]
1.8L, 2.2L SKYACTIV-D S8/SH MY2019 (Denso) [S801/SH9V] [RD/WR/CK] - Ford MG1
Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A] [RD/WR/CK]
Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A] [RD/WR/CK]
Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A] [RD/WR/CK]
Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A] [RD/WR/CK]
Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A] [RD/WR/CK]
Ford Edge: 2.7L Ecoboost (MG1CS018) [K2GA] [RD/WR/CK]
Ford F-150: 2.7L Ecoboost (MG1CS018) [JL3A] [RD/WR/CK]
Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A] [RD/WR/CK]
Ford F350: 6.2L, 7.3L Boss V8 (MG1CS019) [LC3A] [RD/WR/CK] - Toyota/Lexus Generation 3
R7F701202/R7F701216 P5-UDS [RD/WR/CK]
LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216) [RD/WR/CK]
LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216) [RD/WR/CK]
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216) [RD/WR/CK]
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201) [RD/WR/CK]
Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202) [RD/WR/CK]
Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201) [RD/WR/CK]
Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test] [RD/WR/CK]
Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [RD/WR/CK]
Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test] [RD/WR/CK]
NX250 2.5L P5-UDS (A25A-FKS/R7F701216) [RD/WR/CK]
Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK] - Ford Power Stroke
Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [BC3A] [RD/WR/CK]
Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [DC3A/FC3A] [RD/WR/CK]
Ford Truck: 6.7L Power Stroke V8 (EDC17CP65) [HC3A] [RD/WR/CK]
Ford Truck: 3.0L Power Stroke V6 (EDC17CP65) [JL3A] [RD/WR/CK] - Kia/Hyundai Gearbox
Kia/Hyundai: MG7.9.8/MEG17.9.12 Gearbox (ST10F275/TCU) [RD/WR]
TC14 Gearbox (MPC562/TCU) [RD/WR/CK]
TC60/TC80/ME(D)G17.9.8/13 Gearbox (SH72549/TCU) [RD/WR/CK]
MEG17.9.21 Gearbox (SH72549/TCU) [WR/CK]
SIM2K-24x/341 Gearbox (TC1766/TCU) [RD/WR/CK]
SIM2K-24x Gearbox (TC1738/TCU) [RD/WR/CK]
SIM2K-341 Gearbox (TC1738/TCU) [RD/WR/CK]
SIM2K-143 Gearbox (TC1738/TCU) [RD/WR/CK]
SIM2K-302 Gearbox (TC1766/TCU) [RD/WR/CK]
CPTSH2.08.1/CPTSH2.08.2 Gearbox (SH72544/TCU) [RD/WR/CK] - Bosch ME9/MED9/EDC7/EDC16/PSG16/TCU Bootloader
Operation requires a direct connection to the ECU connector and either a Scanmatik 2/Pro adapter or "Powerbox for PCMflash" together with one of the tested adapters.
ME9/MED9/EDC7/EDC16/PSG16/TCU (MPC556/MPC562/MPC564) [RD/WR/CK]
ME9/MED9/EDC7/EDC16/PSG16/TCU MICRO (MPC556/MPC564) [RD/WR/CK]
ME9/MED9/EDC7/EDC16/PSG16/TCU EXT (MPC556/MPC562/MPC564) [RD/WR/CK]
ME9/MED9/EDC7/EDC16/PSG16/TCU EEPROM (MPC556/MPC562/MPC564) [RD/WR] - Subaru Gearbox
Melco CVT CAN-bus (1N83M/1552KB MH8111/1536KB MH5006/1024KB MH8104/512KB) [RD/WR/CK] - Mitsubishi CAN-bus Bootloader
Operation requires a direct connection to the ECU connector!
CAN-bus Bootloader FLASH (MH8114F/MH8115F/MH8501F) [RD/WR/CK]
CAN-bus Bootloader FLASH (MH8601F/MH8610F/MH8611F/1N83M) [RD/WR/CK] - Denso SH725xx/1N83M Bootloader
Operation requires a direct connection to the ECU connector!
SH725xx FLASH [RD/WR/CK]
SH725xx EEPROM [RD/WR]
1N83M FLASH [RD/WR/CK]
1N83M EEPROM [RD/WR] - JLR Gearbox
ZF 6HP26/6HP28 TCM (MPC5xx/TC1766) [RD/WR/CK]
ZF 6HP28 Continental TCM (TC1766) [AH42-Ax] [RD/WR/CK]
ZF 6HP28 Continental TCM (TC1766) EEPROM [AH42-Ax] [RD/WR]
ZF 8HP70 TCM (SH725xx) [RD/WR/CK]
ZF 8HP45/8HP70 TCM (TC2xx) [RD/WR/CK]
ZF 9HP48 TCM (TC1782) [RD/WR/CK]
ZF 9HP48 TCM EEPROM (TC1782) [RD/WR]
AWF21 Freelander 2/Evoque TCM [RD/WR/CK]
AWF21 Ford Mondeo 4 TCM [RD/WR/CK] - Bosch SH725xx TCU Bootloader
Operation requires a direct connection to the ECU connector!
ECUs manufactured after mid-2021 may not be supported.
Bosch SH725xx TCU (FLASH) [RD/WR/CK]
Bosch SH725xx TCU (EEPROM) [RD/WR] - VAG Bosch DQ380/DQ381/DQ500/ZF 8HP
DQ380/381/500 (0DE/0DL/0GC) [VR/WR/CK]
AL420/AL600 (09L/09E) K-Line [VR/RD/WR/CK]
AL420/AL600 (09L/09E) CAN TP2.0 [VR/RD/WR/CK]
AL450/AL551/AL951 (0CM/0BK/0BL) [VR/RD/WR/CK]
AL552/AL952 (0D5/0D6) [VR/WR/CK]
AL1000/AQ250/AQ450 (0C8/09G) UDS [VR/WR/CK]
AL600/AL750/AQ250 (09D/09G) K-Line [Test] [RD/WR/CK]
AL750/AQ250 (09D/09G) CAN TP2.0 [Test] [RD/WR/CK] - VAG Delphi DCM6.2
1.4L, 1.6L, 2.0L TDI (DCM6.2) [VR/RD/WR/CK] - Ford Gearbox
6HP26 TCM [RD/WR/CK]
6HP26 TCM [RD/WR/CK]
5R110 TCM (BlackOak/448KB) [RD/WR/CK]
5R110 TCM (GreenOak/512KB) [RD/WR/CK]
5R110 TCM (SilverOak/2MB)[RD/WR/CK]
6R80/6R140 TCM [BC3A] [RD/WR/CK]
6F55/8F40/10R80/10R140 TCM [HC3A/HL3A/JL3A/JX6A/LC4A] [RD/WR/CK]
8F40/10R80/10R140 TCM [K1GA/K2GA/LC3A/LK4A] [RD/WR/CK] - China Gearbox
BAW A8R50 (ATDG-81-9.4) [VR/RD/WR/CK]
Changan Alsvin 5DCT (EAST80.51/SPC563M) [VR/WR/CK]
Changan Alsvin 5DCT Bootloader (EAST80.51/SPC563M) [RD/CK]
Changan DF733 (ATDG-81-9.4) [RD/WR/CK]
Changan DF727 (EAST80.51/C1/SPC563M) [RD/WR/CK]
Changan DF727 Bootloader (EAST80.51/C1/SPC563M) [RD/CK]
Chery CVT19 (EAST80.11/MPC5534) [VR/WR/CK]
Chery CVT18/CVT25 (EAST80.13/SPC563M) [VR/WR/CK]
Chery CVT25 Bootloader (EAST80.13/SPC563M) [RD/CK]
Chery/Exeed/Jetour 7DCT380 (ATDG-81-9.7) [VR/RD/WR/CK]
Chery/Exeed VX 8AT 2023MY (Aisin 845AHA) [VR/WR/CK]
Geely DSI 6AT [RD/WR/CK]
Geely Coolray 7DCT330 [VR/RD/WR/CK]
FAW DCT270/DCT300 (ATDG-81-9.4) [Test] [RD/WR/CK]
GAC 7WDCT (ATDG-81-9.4) [RD/WR/CK]
Haval 7DCT450 (EAST80.D1) [VR/RD/WR/CK]
Haval 7DCT300 (HYCET) [VR/RD/WR/CK]
Haval/Tank 9AT/9HAT (HYCET) [RD/WR/CK]
Huanghai A8R50 (ATDG-81-9.4) [VR/RD/WR/CK]
JAC A8R50 (ATDG-81-9.4) [VR/RD/WR/CK]
JAC DF733 (ATDG-81-9.4) [VR/RD/WR/CK]
Jetour DF727 (ATDG-81-9.4) [VR/RD/WR/CK]
Jetour DF727 (EAST80.C1) [VR/WR/CK]
Jetour DF727 Bootloader (EAST80.C1/SPC563M) [RD/CK]
SWM 7DCT (TCU-C6) [RD/WR/NC] - PSA DCM6.2
Citroen/Peugeot 2.0L HDi (DCM6.2A) [RD/WR/CK]
Citroen/Peugeot 2.0L HDi (DCM6.2C) [RD/WR/CK] - Ford AdBlue
AdBlue REDCM (DCU17PC01) [CK41] [RD/WR/CK]
AdBlue REDCM (DCU17PC43) [KV6A] [RD/WR/CK] - China MG1
BAIC 1.5L A151A1 (MG1UA008) [RD/WR/CK]
Changan 1.5T (UP8/MG1UA008) [RD/WR/CK]
Changan 1.4T, 1.5T, 2.0T (UD8/MG1US008) [RD/WR/CK]
Chery/Exeed 2.0T F4J20 (MG1US008) [RD/WR/CK]
DongFeng 1.5T (UP8/MG1US008) [RD/WR/CK]
Dongfeng/Voyah C15TDR/C15TE2/C15TP1 1.5T (MG1US008) [RD/WR/CK]
FAW 1.5T, 2.0T (UD8/MG1US008) [RD/WR/CK]
F-150 2.3L Ecoboost China (MG1US008) [P3N9] [RD/WR/CK]
Ranger 2.3L Ecoboost China (MG1US008) [P3N9] [RD/WR/CK]
Geely 1.5L (MG1UA008) [RD/WR/CK]
Geely/Livan 1.5T (MG1US708) [Test] [RD/WR/CK]
Geely 2.0T (Denso/0N50N) [VR/WR/CK]
Great Wall/Haval 1.5T, 2.0T (MG1US008) [RD/WR/CK]
Haval Jolion 1.5T (MG1UA008) [RD/WR/CK]
JAC T9 2.0T (UD8/MG1US008) [RD/WR/CK]
JAC J7 1.5T (UP8/MG1UA008) [RD/WR/CK]
SGMW 1.5L/1.5T N15A/N15T (MG1UA008) [RD/WR/CK]
SWM 1.5T (MG1UA008) [RD/WR/CK] - China DCM6.2AP/DCM7.1AP
BAIC 2.0L TD (DCM6.2AP) [RD/WR/CK]
BAIC 2.0L TD EEPROM (DCM6.2AP) [RD/WR]
Changan 2.0L TD (DCM7.1AP) [RD/WR/CK]
Dongfeng 2.3L TD (DCM7.1AP) [RD/WR/CK]
Dongfeng/Yuchai 2.4L TD (DCM7.1AP) [RD/WR/CK]
Great Wall/Haval 2.0L TD (DCM6.2AP) [RD/WR/CK]
Great Wall/Haval 2.0L TD (DCM7.1AP) [RD/WR/CK]
Great Wall/Haval 2.0L TD EEPROM (DCM7.1AP) [RD/WR]
JAC 2.0L TD (DCM6.2AP) [RD/WR/CK]
JAC 2.0L TD EEPROM (DCM6.2AP) [RD/WR]
Jiangling/Isuzu 2.8L TD (DCM7.1AP) [RD/WR/CK]
Qingling/Isuzu 3.0L TD (DCM6.2AP) [RD/WR/CK]
Qingling/Isuzu 3.0L TD (DCM7.1AP) [RD/WR/CK]
SsangYong: 2.2L XDI (DCM6.2AP/6D/S2) [RD/WR/CK]
SsangYong: 2.2L XDI (DCM6.2AP/6D/S2) EEPROM [Test] [RD/WR]
Trucks (DCM6.24) [Test] [RD/WR/CK]
Foton/Vanche/Yuchai 2.4L TD (DCM7.24) [RD/WR/CK]
Foton/Vanche/Yuchai 2.4L TD EEPROM (DCM7.24) [RD/WR]
Foton/Yuchai 4.2L, 4.3L TD (DCM7.24) [RD/WR/CK]
Foton/Yuchai 4.2L, 4.3L TD EEPROM (DCM7.24) [Test] [RD/WR]
JCB 4.4L TD (DCM2.7AP) [RD/WR/CK]
JCB 4.4L TD EEPROM (DCM2.7AP) [Test] [RD/WR]
JCB 4.4L, 4.8L TD (DCM7.24) [RD/WR/CK]
JCB 4.4L, 4.8L TD EEPROM (DCM7.24) [RD/WR] - Mercedes Benz CRD3/CRD3P
Mercedes-Benz CRD3/CRD3P FLASH [RD/WR/CK]
Mercedes-Benz CRD3/CRD3P EEPROM [RD/WR] - Bosch MD1/MG1 Bootloader
Operation requires a direct connection to the ECU connector and a Scanmatik 2/Scanmatik 2 Pro or Dialink adapter.
ECUs manufactured after mid-2020 may not be supported.
MD1/MG1 FLASH (SPC572L/SPC574K/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP) [RD/WR/CK]
MD1/MG1 EEPROM (SPC572L/SPC574K/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP) [RD/WR]
MG1UA008/MG1US008 FLASH (SPC574K/TC277TP) [RD/WR/CK]
MG1UA008/MG1US008 EEPROM (SPC574K/TC277TP) [RD/WR] - India DCM7.1AP
Ashok Leyland TD (DCM2.5) [RD/WR/CK]
Ashok Leyland 1.5L TD (DCM7.1AP) [RD/WR/CK]
Ashok Leyland LCV TD (DCM7.1AP) [RD/WR/CK]
Eicher E366/E474 2.0L, 3.0L TD (DCM7.1AP) [RD/WR/CK]
Force 2.6L TD (DCM2.7AP) [RD/WR/CK]
Force 2.6L TD EEPROM (DCM2.7AP) [RD/WR/CK]
Force Motors 2.6L TD (DCM7.1AP) [RD/WR/CK]
Kia/Hyundai 1.6L TD (DCM7.1AP) [RD/WR/CK]
Mahindra TD (DCM2.5) [RD/WR/CK]
Mahindra 1.6L TD (DCM2.7AP) [RD/WR/CK]
Mahindra 1.6L TD EEPROM (DCM2.7AP) [Bench] [RD/WR]
Mahindra 1.5L TD (DCM7.1AP) [RD/WR/CK]
Mahindra 1.5L TD EEPROM (DCM7.1AP) [Boot] [RD/WR]
Tata TD (DCM2.5/DCM2.5P) [RD/WR/CK]
Tata 1.5L TD (DCM7.1AP) [RD/WR/CK]
Tata LCV TD (DCM7.1AP) [RD/WR/CK]
Tata Truck TD (DCM7.24) [RD/WR/CK] - Aisin TCU Bootloader
Aisin SH705x TCU (FLASH) [RD/WR/CK]
Aisin SH705x TCU (EEPROM) [RD/WR]
Aisin D70F4019 TCU (FLASH) [RD/WR/CK]
Aisin D70F4019 TCU (EEPROM) [RD/WR]
Aisin R7F7012xx TCU (FLASH) [RD/WR/CK]
Aisin R7F7012xx TCU (EEPROM) [RD/WR] - Toyota/Lexus Generation 4
Operation requires a direct connection to the ECU connector!
LC300 3.3TD P5-UDS (F33A-FTV/R7F701216) [RD/WR/NC]
LC300/LX600/Tundra 3.5T P5-UDS (V35A-FTS/R7F702002) [RD/WR/NC]
LS500 3.5T P5-UDS (V35A-FTS/R7F702002) [RD/WR/NC]
Tundra 3.5T HV P5-UDS (V35A-FTS/R7F702002) [RD/WR/NC]
NX350/RX350/Highlander 2.0T, 2.4T P5-UDS (S24A-FTS/T24A-FTS/R7F702002) [RD/WR/NC]
ES200/Camry/Rav4/Wildlander 2.0L, 2.5L China P5-UDS (M20A/M20C/M20D/A25A/R7F702002) [RD/WR/NC]
LC250 2.7L P5-UDS (2TR-FE/R7F701216) [RD/WR/NC]
LC250 2.8TD P5-UDS (1GD-FTV/R7F701216) [RD/WR/NC]
RX450h/Camry/Corolla/Vellfire 2.0L, 2.5L HV P5-UDS (M20A/M20E/A25A/A25B/R7F701216) [RD/WR/NC]
Yaris GR 1.6T MCU #1 P5-UDS (G16E-GTS/R7F701216) [RD/WR/NC] - ZF TC1782/TC275/TC277 TCU Bootloader
Operation requires a direct connection to the ECU connector!
ZF TC1782/TC275/TC277 TCU (FLASH) [RD/WR/CK]
ZF TC1782/TC275/TC277 TCU (EEPROM) [RD/WR] - China AECS/LinControl
DAM15KR/EA15MR/SWC14M (LinControl LEC4AF) [RD/WR/NC]
DAM16KL (LinControl LEC4AP) [RD/WR/NC]
JAC 2.0T HFC4GA3 (LinControl LEC4AF) [RD/WR/NC]
JAC 1.5T HFC4GC1 (LinControl LEC4GD) [RD/WR/CK]
Lixiang 1.5T (LinControl LEC4GD) [RD/WR/CK]
BAIC 1.5L DAM15KL/R15C1 (AECS FC-34) [RD/WR/CK]
BAIC 1.6L, 2.0L LQ475QMB/LQ481QFB (AECS FC-50) [RD/WR/CK]
Changan 1.2L LJ469Q (AECS FC-34) [RD/WR/CK]
Changan 1.5L DAM15KL (AECS FC-34) [RD/WR/CK]
Chery 1.5L DAM15KR (AECS FC-34) [RD/WR/CK]
Dongfeng 1.5L, 1.6L L4A15Q6/LJ4A16QG (AECS FC-34/FC-50) [RD/WR/CK]
Dongfeng/Fengxing 1.5T 4J15T (AECS FC-34) [RD/WR/CK]
Dongfeng/Fengxing 1.6L 4A92FR (AECS FC-34) [RD/WR/CK]
Dongfeng/Fengxing 1.6L CN16 (AECS FC-50) [RD/WR/CK]
FAW 1.2L LJ469Q (AECS FC-34) [RD/WR/CK]
FAW 1.5L DAM15KL (AECS FC-50) [RD/WR/CK]
Foton 1.5L DAM15KL (AECS FC-34) [RD/WR/CK]
Iran Khodro 1.7L EF7TC (AECS FC-34) [RD/WR/CK]
JAC 1.6L DAM16KL/HFC4GB3 (AECS FC-34) [RD/WR/CK]
JAC 1.8L, 2.0L, 2.0T LJ4A18Q6/LJ481Q/HFC4NA3 (AECS FC-34/FC-51) [RD/WR/CK]
Jetour/Soueast 1.6T, 2.0T F4J16C/F4J20 (G-Tech GT-03) [RD/WR/CK]
Jinbei/SWM/Brilliance 1.5L SWC15M (AECS FC-34) [RD/WR/CK]
Jinlu/Jinlong 2.0L LJ481 (AECS FC-34) [RD/WR/CK]
Joylong 2.4L 4K22D4M (AECS FC-50) [RD/WR/CK]
King Long/Jinlong 1.8L LJ4A18 (AECS FC-34) [RD/WR/CK]
LDV/SAIC 1.5L LJ4A15 (AECS FC-34) [RD/WR/CK]
Longma 1.2L, 1.5L LJ469Q/DAM15KR (AECS FC-34) [RD/WR/CK]
Nanjun 1.5L LJ4A15 (AECS FC-34) [RD/WR/CK]
SGMW 1.8L, 2.0L LJ479Q6/LJM20B (AECS FC-34/FC-50) [RD/WR/CK]
Shandong Kama 1.6L DAM16KR (AECS FC-34) [RD/WR/CK]
Xiamen Golden Dragon 1.8L, 2.0L LJ4A18/1TZS (AECS FC-34) [RD/WR/CK]
UAZ Patriot 2.7L (AECS) [RD/WR/CK] - China Continental
Geely 01609492 (Easy U2) [RD/WR/CK]
Geely 1.0T (EasyU SDI) [RD/WR/CK]
SGMW 1.2L N12 (Easy U2.5) [RD/WR/CK]
SGMW 1.5L B15 (Easy U2W) [RD/WR/CK]
SGMW 1.5L N15A (Easy U3.6) [RD/WR/CK]
SGMW 1.5L N15T (Easy U3D/U3E) [RD/WR/CK]
SGMW K-Line (SIM2K-D51/51.4/SCE60) [RD/WR/CK] - Volvo/Renault EMS 2.3/2.4 Bootloader (Test)
Volvo/Renault EMS 2.3/2.4 Bootloader FLASH (MPC5674F/MPC5777C) [RD/WR/CK]
Volvo/Renault EMS 2.3/2.4 Bootloader EEPROM (MPC5674F/MPC5777C) [RD/WR] - Ford SID212/SID212EVO
Ford Focus 4: 2.0L EcoBlue (SID212/SID212EVO) [RD/WR/CK]
Ford Kuga 3: 2.0L EcoBlue (SID212/SID212EVO) [RD/WR/CK]
Ford Mondeo 5: 2.0L EcoBlue (SID212/SID212EVO) [RD/WR/CK]
Ford Transit: 2.0L Diesel (SID212/SID212EVO) [RD/WR/CK] - China Marelli
Marelli 11GC Bootloader (FLASH) [RD/WR/CK]
Marelli 11GC Bootloader (EEPROM) [RD/WR]
Marelli 11GDB Bootloader (FLASH) [RD/WR/CK]
Marelli 11GDB Bootloader (EEPROM) [RD/WR]
