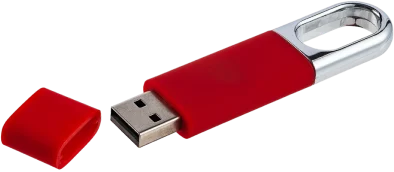

MMC Flash USB Dongle

Code: DJ-MMCFLASH-USB-DONGLE

$34.50

Physical USB protection key for MMC Flash software. Select at least one software module with a new key; module activations, vehicle interfaces and connection cables are priced separately.

Delivery Shipped by courier · Delivery policy
Category MMC Flash USB Dongle
Questions WhatsApp · Email us

Description

The MMC Flash USB dongle is the physical electronic access and protection key for activated MMC Flash software modules.

Package contents

MMC Flash USB protection key

Requirements

A new USB key must be ordered with at least one software module. Check the exact ECU coverage, software version, supported functions, operating requirements and any Master or Slave requirements in the module list below.

Sold separately

Software module activations, vehicle interfaces and connection cables are priced separately.

Notes

The USB key is purchased once; the key and selected module activations form the software package.

Available functions depend on the modules activated on the key. Depending on the module, functions include ECU identification, reading, writing, checksum calculation, EEPROM access and diagnostic-error handling. Functions and limitations vary by module.

MMC Flash software is supplied electronically by email.

Online firmware editing is available as a separate service through the MMC Flash application and requires an internet connection. Available editing solutions depend on the ECU file; programming functions depend on the modules activated on your dongle.

For software updates, use the program-update entry in the manufacturer’s MMC Flash catalog and provide your USB key number as instructed for your installed version.

Modules and supported functions

H8/53x, SH7052/SH7055 [RD/WR/ID]

Scope: Read full flash image; Write full flash image; ECU identification.

MH7201F_ (128k): Space Wagon 2.4 GDI from 1997; Galant 4G93 GDI; Mirage Dingo 1.5 4G15 GDI.

MH7202F_ (128k): the Mitsubishi applications listed for MH7203FA_, plus Mazda 626 (1998).

MH7203FA_ (128k): Mitsubishi Carisma, Pajero, Eclips and Galant (2000–2004); Montero / Pajero 3.2 DID 4m41 (2002).

Hyundai applications: Sonata 2.0 (Korea / Tagaz, 2004), Santa Fe 2.4 (2001–2004), Tiburon 2.0 (Cupe), and Matrix 1.8.

Kia applications: Sorrento 2.4 and Magentis 2.0 (2000–2004).

MH8206F_ (256k): Lancer IX with manual transmission.

MH8305F_ (512k): Lancer IX with automatic transmission.
Mitsubishi M32R [RD/WR/CK/ER]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; Checksum calculation; Read and clear diagnostic trouble codes.

Supported processors and applications

MH8102F_ (512k)

MH8201F_ (512k)

MH8202F_ (512k)

MH8301F_ (512k): Montero Sport 3.5L from 2001; Pajero 3.0 from 2001.

MH8302F_ (512k): Galant 2.4L MIVEC from 2004; Outlander 2003–2005; Outlander CU5W 2.4 AT MIVEC 07/05–12/08; Montero Sport 3.5L 4WD from 2003; Galant 3.8L V6 from 2004; Eclipse GT 2006–2009.

MH8303F_ (768k): Outlander AWD AT from 2006; Outlander 2.4L 4WD AT MIVEC from 2006.

MH8304F_ (512k & 768k): Galant 2.4L from 2005; Colt 1.3 2004–2008.
Mitsubishi Lancer X 1.5 / Outlander JDM [RD/WR/ID/CK/ER/CF]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.

Read and write support covers these M32R processors in Mitsubishi engine ECUs and active centre differential controllers:

MH8104F_ (512k), CAN

MH8104F_ (512k), K-Line repair / recovery

MH8106F_ (1024k), CAN

MH8106F_ (1024k), K-Line repair / recovery

EVO X ACD M32R (512k), K-Line

Coding and VIN data can be read and written. ECU identification includes the software version, VIN and hardware implementation number; checksum correction is available.

The Unlock function provides recovery after an unsuccessful ECUFLASH read or write attempt.

The built-in bootloader provides K-Line software recovery for Mitsubishi M32R processors, including ECUs left in an interrupted programming state.

During a read or write operation, the manufacturer recommends disconnecting the fan or connecting a charger.
Mazda Pre-facelift [RD/WR/ID/CK/ER]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Approximate model years: 2000–2007.

EU Mazda 3-6 1,6 Z6

JDM Mazda 3 MPS

JDM Mazda 6 MPS

EU Mazda 3 MPS

EU Mazda 6 MPS

EU Mazda CX7

Mazda RX8 1.3 2003 N31EU000013SN020 AT 190hp

Mazda RX8 1.3 MT 2005 N3Z2ET00013H6020 240hp

Mazda RX8 1.3 MT 2003 N3J1EM00013H6F10 240hp

Mazda 3 2.0 MT 2007 LFR5EC000LFX6060 LFR5 18 881C EUR

Mazda 6 1.8 MT 2006 L829EE020L8D5060 L829 18 881E GG

Mazda 6 1.8 2005 MT L829ED010L8D5060 L829 18 881D

Mazda 6 2.0 MT 2006 LFH1ED010LFX6060 LFH1 18 881D

Mazda 6 2.0 AT 2005 LFH2ECO10LFXF060 LFH2 18 881C

Mazda 3 2.0 MT 2005 LF50EG020LFD5060 LF50 18 881G

Mazda 3 2.0 MT 2008 LFR5ED000LFX6060 LFR5 18 881D BK

Mazda 3 2.0 AT 2008 LF8TEB000LFXS050 LF8T 18 881B RUS

Mazda 3 2.3 MT 2004 L3S7EF050L3V5010 L3S7 18 881F USA

Mazda 3 2.3 MT 2004 L3S2EC020L3V5020 L3S2 18 881C USA

Mazda 3 2.3 MT 2006 L3R4EE020L3X6060 L3R4 18 881E 166hp

Mazda CX7 2.3 T AT 2007 L37LED000L3TB051 L37L 18 881D

Mazda CX7 2.3 T AT 2008 L37LEG000L3TB051 L37L 18 881G

Mazda CX7 2.3 T AT 2008 L39MEB000L3TB011 L39M 18 881B

Mazda CX7 2.3 T AT 2007 L39PEC000L3TB021 L39P 18 881C

Mazda CX7 2.3 T AT 2006 L33PEP000L3TB021 L33P 18 881P

Mazda 6MPS 2.3 T MT 2005 L3M7EF000L3T6061 L3M7 18 881F

Mazda 3 1.6 AT 2007 Z634EC000Z6VS060 G-475 MY2006

Mazda 3 1.6 AT 2007 Z634EB000Z6VS060 G-475 MY2006

Demio _ 1.3 AT 2006 ZJ21EH000ZJVN0A0

Axela _ 1.5 AT 2004 ZY09EC000Z6VS060 114hp

Mazda 3 1.6 MT 2006 Z627EA000ZJVN0A0 G-474

Mazda 3 2.0 MT 2007 LFS8EC000LFX5010 USA

Mazda 3 1.6 MT 2004 Z601EE000Z6V5060
Yamaha Snowmobiles and Outboards [RD/WR/CK]

Scope: Read full flash image; Write full flash image; Checksum calculation.

Yamaha F40/50/60 with MH8102F: non-potted ECU.

Yamaha RFX Nitro with MH8104F: potted ECU.

Additional supported processors: MH8106F and MH8115F.
Mitsubishi Diesel Denso SH7058/SH7058S/SH7059 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
- Reading
- Writing
- Checksum verification and correction
Coverage includes the 7058, 7058S and 7059 processors fitted to Mitsubishi Denso ECUs.
Mazda M32R [RD/WR/ID/CK/ER]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Read, write and recovery functions are provided for Mazda M32R ECUs used with 1.8L, 2.0L and 2.5L engines from 2008 onward. The manufacturer lists recovery from an interrupted ECU state.

Mazda 6 1.8 MT 2009 L837EE010L8D5060 L837 18 881E GH

Mazda 6 1.8 MT 2011 L847EC000L8D5060 L847 18 881C 120hp

Mazda 6 2.5 MT 2008 L509EE010L5X6060 L509 18 881E

Mazda 6 2.5 MT 2011 L596EC000L5X6060 L596 18 881C

Mazda 6 2.0 AT 2008 LFCJED000LFXA060 LFCJ 18 881D 147hp

Mazda 6 2.0 AT 2011 LFCJEC000LFXA060 LFCJ 18 881C

Mazda 6 2.0 AT 2009 LFCJEB000LFXA060 LFCJ 18 881B

Mazda 6 2.0 AT 2009 LF4KEF010LFXA060 LF4K 18 881F 147hp GH

Mazda 6 2.0 MT 2010 LF4JEF010LFX6060 LF4J 18 881F

Mazda 6 2.0 MT 2009 LF4JEE010LFX6060 LF4J 18 881E GH

Mazda 6 2.0 MT 2011 LF4JEH010LFX6060 LF4J 18 881H 147hp
Ford SIM28/SIM29 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction applies to supported Ford petrol vehicles with 1.4L–1.6L engines, approximately model years 2004–2009.

Listed applications: FOCUS 2, C-MAX, KUGA, FIESTA and FUSION.
Ford Visteon ESU-131/411/418 Petrol [RD/WR/CK/ER]

Scope: Read calibration data; Write calibration data; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction covers the listed Ford petrol applications with 1.8L, 2.0L and 2.3L engines, approximately model years 2004–2011.

Examples include FOCUS 2 and C-MAX.
Kia/Hyundai SIM2K-140/141/241/341 [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

ECU families: Kia / Hyundai SIM2K-140, SIM2K-141, SIM2K-241 and SIM2K-341.
Ford Visteon ESU-312/412/415 Petrol [RD/WR/ID/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Read and clear diagnostic trouble codes.

Reading and writing are supported for the listed Ford petrol applications with 1.8L, 2.0L and 2.3L engines, approximately model years 2004–2011.

Listed vehicles include MONDEO IV (4), S-MAX and GALAXY.
VAG SIMOS 8.xx / PCR2.1 [RD/WR/ID/CK/ER/VR]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

ECU families: VAG SIMOS 8.xx and PCR2.1.
Mazda Diesel Denso SH7058 Non-BGA [RD/WR/ID/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Read and clear diagnostic trouble codes.

Applicable ECUs use RF7x or RF8x software and an SH7058 processor in a non-BGA package.
Ford Diesel Delphi DCM3.5 [RD/WR/ID/CK/ER/CF]

Scope: Read calibration data; Write calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.

Supported models

Model — Engine / output

FOCUS (III SERIES) — 2.0 16V TdCi (115 HP)

C-MAX (II) — 2.0 16V TdCi (115 HP)

GALAXY (III) — 2.0 16V TdCi (140/163 HP)

KUGA — 2.0 16V TdCi (140/163 HP)

MONDEO (IV SERIES) — 1.8 16V TdCi (125 HP)

MONDEO (IV SERIES) — 2.0 16V TdCi (115/140/163 HP)

S-MAX — 2.0 16V TdCi (115/138/163 HP)

The manufacturer notes that these ECU types may also appear in other Ford models.
Ford Bosch ME9.0 Turbo Petrol [WR/ID/ER]

Scope: Write calibration data; ECU identification; Read and clear diagnostic trouble codes.

This module provides writing only for the supported Ford vehicles with turbocharged petrol engines.
Mazda MH8110 CX-7 / Mazda 3 / Mazda 6 2010+ [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction covers Mazda petrol applications with 2.0L, 2.5L and 2.3L turbo engines, including CX-7, Mazda 3 and Mazda 6 from 2010 onward.

Mazda CX7 2.5 AT 2011 L587EB000L5XA050 L587 18 881B 163hp

Mazda CX7 2.3T AT 2010 L3CKEG000L3TB051 L3CK 18 881G 238hp

Mazda 3 2.5 AT 2011 L5E8EB000L5XA020 L5E8 18 881B USA

Mazda 3 2.0 MT 20xx LFAREB000LFX6050 LFAR 18 881B

Mazda 3 2.0 AT 2011 LFJPEA000LFXA060 LFJP 18 881A

Mazda 5 2.0 AT 2012 LFFREE000LFXA060 LFFR 18 881E
Ford SIM210/SIM22 [RD/WR/CK/ER]

Scope: Read calibration data; Write calibration data; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction applies to supported Ford petrol engines from 1.3L to 1.6L, approximately model years 2004–2009.

Listed applications: FOCUS 2, C-MAX, KUGA, FIESTA and FUSION.
Kia/Hyundai EDC17 [RD/WR/ID/CK/ER/VR]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.
- Calibration reading (slow) and writing over CAN.
- Read and clear diagnostic trouble codes.
- Verify and correct checksums.
- Virtual reading.
Supported ECU types: EDC17C08 and EDC17CP14, with any TPROT version.
Ford Diesel SID206 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction covers Ford SID206 diesel applications, approximately model years 2005–2010. The catalogue names KUGA, MONDEO 6(IV), FOCUS 2(II), GALAXY 2(II), S-MAX, ESCAPE, FIESTA 7(VII), FUSION and TRANSIT CONNECT.

Listed diesel applications

FIESTA 7(VII) 1400 TDCI output 68

FIESTA 7(VII) 1400 TDCI output 68

GALAXY 2000 TDCI output 136

GALAXY 2(II) 1800 TDCI output 100

GALAXY 2(II) 1800 TDCI output 125

GALAXY 2(II) 2000 TDCI output 130

GALAXY 2(II) 2000 TDCI output 140

MONDEO 6(IV) 1800 TDCI output 125

MONDEO 6(IV) 2000 TDCI output 130

MONDEO 6(IV) 2000 TDCI output 140

S-MAX 1800 TDCI output 100

S-MAX 1800 TDCI output 125

S-MAX 2000 TDCI output 140

TRANSIT CONNECT 1800 TDCI output 75

TRANSIT CONNECT 1800 TDCI output 90

TRANSIT CONNECT 1800 TDCI output 110
Ford Siemens VDO EMS2102/EMS2101 [RD/WR/CK/ER]

Scope: Read calibration data; Write calibration data; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction covers supported Ford petrol applications with 1.2L–1.6L engines, including MONDEO and FIESTA.
Mazda CX-5 2.2 Diesel [RD/WR/ID/CK/ER/CF]

Scope: Read calibration data; Write calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction is provided for supported Mazda CX-5 diesel applications with the 2.2D engine.
Mazda Denso 1.3/1.5/1.6 AT/MT 2009+ [RD/WR/ID/CK/ER/CF]

Scope: Read calibration data; Write calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction covers supported Mazda petrol applications with 1.3L, 1.5L and 1.6L engines, automatic or manual transmission, from 2009 onward.

The external EEPROM containing the VIN can also be read and written.
Mitsubishi MH8115F/MH8601 [RD/WR/ID/CK/ER]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
- Read and write the complete processor dump over K-Line, either on the bench or through OBD2.
- Read and write over CAN.
- Recalculate checksums.
Ford Bosch MED17.x [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Reading and writing are supported. Original IDS firmware in VBF format can be converted into a binary file.
Ford EMS2204/EMS2207 [WR/ID/CK/ER]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
The detailed module description specifies writing, while the manufacturer’s function summary also lists full-image reading. Confirm reading support for your specific ECU before ordering.
- Write supported BIN or VBF firmware files.
- Convert original IDS VBF firmware to BIN.
- Correct checksums.
- Bypass the digital signature.
- Read and clear diagnostic trouble codes.
Subaru Hitachi/Unisia JECS [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

For supported Subaru petrol vehicles, this module reads full flash and writes calibrations in Hitachi / Unisia JECS ECUs with the SH7058 processor.

Listed ECU identifiers: WA12212930WWW, WA12212940WWW and WA12212970WWW.

Checksum / CRC correction is available.
Honda/Acura K-Line [WR/ID/CK/ER/VR]

Scope: Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

Coverage includes most Honda / Acura ECU types that are programmed over K-Line.

Checksum correction is supported.

For an unrecognized ECU within a declared supported family, the manufacturer requests its Report file by email. Its stated turnaround for adding support is approximately 30 minutes to one day.
Mazda SKYACTIV 2.0/2.5 Mitsubishi ECU [RD/WR/ID/CK/ER/CF]

Scope: Read calibration data; Write calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction covers supported Mazda petrol vehicles with 2.0L and 2.5L SKYACTIV engines and Mitsubishi-manufactured ECUs.

Mazda CX5 2.0 AT 2012 PE2JEF000PE0B061 PE2J 18 881F 150hp

Mazda 3 2.0 AT 2013 PSZKE0000PE0B020 USA

Mazda 3 2.0 AT 2013 PE2K 18 881N USA

Mazda 3 2.0 AT 2013 PE08 18 881N USA

PEBB-18881-D – Mazda CX-5 2.0l AT 4WD Mitsubishi

PEBA-18881-D – Mazda CX-5 2.0l AT 2WD Mitsubishi
VAG K-Line [RD/WR/ID/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Read and clear diagnostic trouble codes.
- Read and write firmware.
- Verify and correct firmware checksums.
Listed supported ECUs: MAGNETI MARELLI 7GV, 7GVE and 4HV.

SIMOS 7.1, 7PP and 7.1A are mentioned as planned additions in the manufacturer’s description; that statement does not confirm current support.
Mazda SKYACTIV 1.5/1.6/2.0/2.5 Denso ECU [RD/WR/ID/CK/ER/CF]

Scope: Read calibration data; Write calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.

The detailed catalogue examples concern checksum correction on Mazda 2.0L and 2.5L SKYACTIV petrol applications with Denso ECUs.

PE3B 18 881F

PE3D 18 881F

PECD-18881-D – Mazda CX-5 2.0l AT 4WD Denso

PE3B-18881-D – Mazda CX-5 2.0l AT 4WD Denso

PECC-188K2-D – Mazda CX-5 2.0l AT 2WD Denso
Nissan Hitachi TCM [RD/WR/ID/CK/ER/VR]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

Application family: Nissan Hitachi transmission control modules (TCM).
PSA SID208 Peugeot/Citroen [RD/WR/ID/CK/ER/EE]

Scope: Read full flash image; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and write EEPROM; Read and clear diagnostic trouble codes.

Application family: PSA SID208 ECUs in Peugeot and Citroen vehicles.
Denso SH705x with EEPROM [RD/WR/CK/EE]

Scope: Read full flash image; Write full flash image; Checksum calculation; Read and write EEPROM.

Read and write support covers most Denso ECUs using SH7055, SH7058 and SH7059 processors, including full-flash access.

Changed-block writing is available. Erasure works on blocks rather than individual bytes; the processor flash is divided into 16 blocks of unequal size.

Firmware checksum correction is supported.
Nissan/Infiniti Hitachi SH705x/SH7253x CAN [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Read the complete flash image from SH705x and SH7253x processors.

Recalculate checksum / CRC data.

Read and clear diagnostic trouble codes.

SH705519N 512Kb

SH705822N 1024Kb

SH705828N 1024Kb

SH705927N 1536Kb

S7253131N 1280Kb

S7253332N 2048Kb

Nissan

Micra 1.2 16v SH7055 512k CAN

Cube 1.8 16v SH7055 512k CAN

Versa 1.6 16v SH7055 512k CAN

Note 1.6 16v SH7055 512k CAN

X-Trail 2.0 16v SH7055 512k CAN

Lafesta 2.0 16v SH7055 512k CAN

Rogue 2.5 16v SH7055 512k CAN

Tiida 1.6 16v SH7055 512k CAN

Qashqai 2.0 16v SH7055 512k CAN

Altima 2.5 16v SH7058 1024K CAN

Altima 3.5 V6 SH7058 1024K CAN

Versa 1.8 16v SH7058 1024K CAN

Cube 1.8 16v SH7058 1024K CAN

Qashqai 1.6 16v SH7058 1024K CAN

Qashqai 2.0 16v SH7058 1024K CAN

X-Trail 2.0 16v SH7058 1024K CAN

Quest 3.5 V6 SH7058 1024K CAN

Versa 1.6 16v SH7058 1024K CAN

Versa 1.8 16v SH7058 1024K CAN

Sentra 2.0 16v SH7058 1024K CAN

Tiida 1.6 16v SH7058 1024K CAN

Tiida 1.8 16v SH7058 1024K CAN

Micra 1.2 16v SH7058 1024K CAN

Juke 1.6 16v SH7058 1024K CAN

GTR 3.8 V6 SH7058 1024K CAN

Murano 3.5 V6 SH7058 1024K CAN

Maxima 3.5 V6 SH7058 1024K CAN

Elgrand 3.5 V6 SH7058 1024K CAN

Rogue 2.5 16v SH7058 1024K CAN

Teana 2.5 16v SH7058 1024K CAN

Teana 3.5 V6 SH7058 1024K CAN

GTR 3.8 V6 SH7059 1536K CAN

Pathfinder 3.5 V6 SH7059 1536K CAN

Patrol 5.6 V8 SH7059 1536K CAN

Z350 3.5 V6 SH7058 1024K CAN

Z350 3.5 V6 SH7059 1536K CAN

Z370 3.7 V6 SH7059 1536K CAN

Other applications may use the listed ECU families.

Infiniti

G37 3.7 V6 SH7059 1536K CAN

FX37 3.7 V6 SH7059 1536K CAN

M37 3.7 V6 SH7059 1536K CAN

FX50 5.0 V8 SH7059 1536K CAN

QX 5.6 V8 SH7059 1536K CAN

M25 2.5 V6 SH7058 1024K CAN

FX35 3.5 V6 SH7058 1024K CAN

EX35 3.5 V6 SH7058 1024K CAN

G35 3.5 V6 SH7058 1024K CAN

Other applications may use the listed ECU families.
Honda/Acura CAN [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

The module covers most of the listed Honda / Acura ECU types programmed over CAN:

Matsushita SH7058 1024K

Matsushita SH72543 2048K

Continental MPC5554 2048K

Temic MPC5554 2048K

Keihin MPC5566 3072K

Keihin SH72543 2048K

Keihin SH7058 1024K

Hitachi SH7059 1536K

Hitachi SH72543 2048K

Reading returns the complete processor flash image. Writing is limited to calibration data.

Checksum correction is available.

For an unrecognized ECU within a declared supported family, the manufacturer requests its Report file by email and states an approximate support-addition time of 30 minutes to one day.
Nissan/Infiniti Hitachi/Unisia JECS SH705x K-Line [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
Supported operations
- Fast full-flash reading: approximately 5 minutes for SH7058 and 2.5 minutes for SH7055.
- Slow reading, used to add ECU support without dismantling the unit: from approximately 50 minutes.
- Full-flash writing: approximately 15 minutes for SH7055 and 25 minutes for SH7058.
- Checksum correction.
- Resume the writing session after a communication interruption.
Supported processors

SH705415N

SH705507N

SH705513N

SH705520N

SH705524N

SH705529N

SH705821N

SH705823N
Suzuki Hitachi SH7058 K-Line [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Read full flash and write calibration data on supported Suzuki petrol vehicles with Hitachi SH7058 ECUs.

CRC correction and engine-ECU fault-code reading / clearing are available.

Listed applications: Suzuki Escudo 2.7L and Suzuki Grand Vitara 2.7L.
BMW Bosch F-Series ENET [WR/ID/CK/ER/CF/VR]

Scope: Write calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

;00000316 DDE721b-ME(D)/EDC17

;0000063C DDE73a-ME(D)/EDC17

;0000076B DDE731a-ME(D)/EDC17

;000007D0 MEVD17.2

;00000A0A DDE701a-ME(D)/EDC17

;00000ABD MEVD17.2.4

;00000C49 ME17.2

;00000C9D DDE741a-ME(D)/EDC17

;00000E2A MEVD17.2.5

;00000FEE MEVD17.2.6

;00001218 DDE701P-ME(D)/EDC17

;0000121F DDE721P-ME(D)/EDC17

;00001242 MEVD17.2.8

;00001243 MEVD17.2.4

;000013E5 MEVD17.2.9

;00001400 MEVD17.2.4

;00001501 DDE751-ME(D)/EDC17

;000017D3 MEVD17.2.6

;000018FF MEVD17.2.9

;00001901 MEVD17.2.9

;00001933 MEVD17.2.9

;000019A7 MEVD17.2.9

;000019DC MEVD17.2.G

;00001A83 MEVD17.2.G

;00001ABD MEVD17.2.6

;00001BD5 MEVD17.2.9

;00001C19 MEVD17.2.6

;00001CA3 MEVD17.2.9

;0000208A MEVD17.2.3

;0000208C MEVD17.2.3

;000020D5 MEVD17.2.G

;0000226E DDE741P-ME(D)/EDC17

;00002666 DDE742-ME(D)/EDC17

;00003064 ME17.2.4

;000030BB DME-MEVD17.2.G

;00003421 ME17.2.4

;00003747 ME17.2.4

;00003DE7 MEVD17.2.3
Renault Petrol [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
- ECU identification
- Read and write calibrations
- Read and clear diagnostic trouble codes
- Checksum correction
Logan / Sandero — EMS3120 TC1738 [2048k], CAN

Fluence / Megane — EMS3120 TC1738 [2048k], CAN

Fluence / Megane — EMS3110 TC1766 [1504k], CAN

Kangoo — EMS3110 TC1766 [1504k], CAN

Sagem old S3000 — SH7055 [512k], CAN

Sagem new S3000 — SH7055 [512k], CAN

Valeo V40/V42 — SH7058 [1024k], CAN

Duster / X-Ray — EMS3125 TC1782 [2560k], CAN
Nissan Hitachi Gen2 SH72533 CAN 2014+ [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction is available for the supported Nissan Hitachi Gen2 SH72533 CAN applications from 2014 onward.
Subaru Denso [RD/WR/ID/CK/ER]

Scope: Read full flash image and calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum verification and correction are supported for these Denso applications:

BRZ SH72531 [1280k] CAN 2013+

SH7058 [1024k] CAN 2007+

SH7058 [1024k] K-line 2003+

SH7055 [512K] K-line

SH7055 JDM [512K] K-line

The manufacturer indicates that further module updates are planned.
Ford DCU101/102/104/201 [RD/WR/CK/ER]

Scope: Read calibration data; Write calibration data; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction is available for the supported Ford DCU101, DCU102, DCU104 and DCU201 applications.
Ford USA [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction is supported.

Listed ECU families: M799G; PCM170F; PCM150F; PCM190F; Meg9.8.1.
Mazda SKYACTIV 1.5/1.6/2.0/2.5 Denso Crypto [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Checksum correction covers the listed Mazda 3, CX-5 and Mazda 6 applications with 1.5L, 2.0L and 2.5L SKYACTIV-G engines, plus Z6 1.6L.
Ford SID208/SID209 [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
- Read and write firmware in binary format.
- Verify and correct checksums.
- Convert VBF files to BIN.
BSL access and unlocking
- Read the full firmware image in BSL mode.
- Read the password through OBD.
- Unlock the ECU in BSL mode to enable OBD writing. This requires opening the ECU cover.
Kia/Hyundai EDC16 [WR/ID/CK/ER]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

K-Line connection provides calibration reading and writing.

CAN connection provides writing of the program and calibration data.

Diagnostic trouble codes can be read and cleared.

Checksum verification and correction are provided, with digital-signature handling.

Covered ECU versions: EDC16C39-5.41 and EDC16CP34-5.30.
Ford EMS2214 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Firmware can be read and written in binary format.

Checksums can be verified and recalculated.

VBF files can be converted to BIN format.
Ford EMS2205 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Firmware reading and writing are available for the covered EMS2205 applications.

Diagnostic trouble codes can be read and cleared.

Checksum verification and recalculation are supported.
Ford EMS2211 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Firmware reading and writing are available for the covered EMS2211 applications.

Checksums can be verified and recalculated; digital-signature bypass is included.
Ford EMS2510/EMS2511 [RD/WR/ID/CK/ER/VR]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

Firmware reading and writing are available for the covered EMS2510/EMS2511 applications.

Checksum verification and correction include digital-signature bypass.

Virtual reading and conversion from dealer-format *.VBF files are available.
Ford Diesel DCM6.1 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

The module provides firmware reading and writing for the covered DCM6.1 applications.

Checksums can be verified and recalculated.
VAG MED17/EDC17 UDS [WR/ID/CK/ER/VR]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

Virtual reading is available.

Calibration data can be written to the ECU.

Diagnostic trouble codes can be read and cleared.

Checksums can be verified and recalculated.

Digital-signature bypass is supported.

Covered ECU families:

ME(D)17.1 / 17.5 / 17.1.1 / 17.1.6 / 17.5.5 / 17.5.20 / 17.5.21 / 17.5.22 / 17.5.24 / 17.5.25 / 17.5.26

EDC17C46 / EDC17C54 / EDC17C64 / EDC17CP04 / EDC17CP14 / EDC17CP20 / EDC17CP24 / EDC17CP44
Powershift 6DCT250 TCM [RD/WR/ID/CK/ER/VR]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

Software coverage for Powershift 6DCT250 transmission control modules.
PSA Valeo V46 Peugeot/Citroen [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Software coverage for Valeo V46 ECUs used in Peugeot and Citroen applications.
Volkswagen AG TP2.0/KWP2000 [WR/ID/CK/ER/VR]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

Software coverage for Volkswagen AG applications using TP2.0/KWP2000.
Mitsubishi ETACS and ECU Coding [ID/CK/ER/CF]

Scope: ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.

The module can edit the configuration functions made available by the engine ECU or ETACS. Factory immobilizer removal is available on supported configurations. The actual function set depends on the vehicle, model year, market and installed firmware.
Suzuki MH8115/MH8114 [RD/WR/ID/CK]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation.

Software coverage for Suzuki MH8115 and MH8114 ECU applications.
Ford EMS24xx [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
1. ECU identification
2. Reading and writing calibration data
3. Reading and clearing diagnostic trouble codes
4. Checksum recalculation
5. VBF file conversion
BMW Bosch MED17/EDC17 E-Series [WR/ID/CK/ER/VR]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.
Firmware writing is available.

Diagnostic trouble codes can be read and cleared.

Virtual reading is supported.

Checksum verification and correction include digital-signature bypass.

The software offers these tabs:
- CAN — use this tab for the Master ECU.
- Slave — use this tab when writing the second engine ECU in a dual-ECU setup.
- Stock — restores the factory configuration without a patch and retains the original CVN; available for both Master and Slave ECUs.
- Repair — supports recovery from abnormal situations on either the Master or Slave ECU.
Minimum computer specification: Intel Core i3 at 2.5 GHz and 4 GB RAM.
Denso Gen2 SH72xx [RD/WR/ID/CK/ER/EE]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation; Read and write EEPROM; Read and clear diagnostic trouble codes.

This module supports bench cloning without opening the ECU housing, and chip tuning of covered Denso Gen2 SH72xx ECUs.
Isuzu Transtron [RD/WR/ID/CK/ER/CF]

Scope: Read full flash image; Write calibration data; ECU identification; Read and write configuration data; Checksum calculation; Read and clear diagnostic trouble codes.
The module detects the memory size automatically. The manufacturer lists applications across markets, including passenger vehicles, trucks and special-purpose equipment. A full read takes approximately one hour; writing passenger-vehicle and truck ECUs usually takes 10–15 minutes. Some SH7059 ECUs used in special-purpose equipment take about one hour to write.

Processor coverage: SH7058, SH7059, SH72533 and SH72544.

Engine examples reported by the manufacturer: 4HK1, 4JJ1, 6UZ1, 4JK1 and 6HK1.

SH7055 is read-only; writing is not available.

Additional functions and connections listed in the English catalog:
- ECU identification.
- Reading the full flash image.
- Writing calibration data with checksum calculation.
- Editing the VIN.
- Reading and clearing diagnostic trouble codes.
- SH7055 reading uses K-Line only.
- SH7058, SH7059, SH72533 and SH72544 support reading and writing through K-Line and CAN.
Mitsubishi TCM/CVT/AT/4WD/ACD [RD/WR/ID/CK]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation.

Software coverage for Mitsubishi TCM, CVT, AT, 4WD and ACD control units.
Mercedes-Benz MED17/EDC17 [RD/WR/ID/CK/ER/VR]

Scope: Read calibration data; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

MED17: virtual reading is available. Modified firmware is written as calibration data only. For a factory restoration, boot and code data from the MMC Flash virtual-reading service can be written.

EDC17: calibration data can be read directly or obtained through virtual reading. Modified firmware is written as calibration data only. Factory boot and code data from the MMC Flash virtual-reading service can also be written.
Mazda TCM MH8104 [RD/WR/ID/CK/ER]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Bench cloning is available without opening the transmission controller. Coverage includes potted TCUs in metal housings and non-potted TCUs in plastic housings.
Mazda Gen4 Denso/Mitsubishi SKYACTIV-G MY2019 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

This module provides chip-tuning coverage for Mazda model-year 2019 vehicles with Denso PYFB or Mitsubishi PYFA ECUs and 1.5L, 2.0L, 2.5L or 2.5T engines.
Yamaha/Kawasaki SH725xx [RD/WR/ID/CK]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation.

Software coverage for Yamaha/Kawasaki SH725xx applications.
Nissan UDS Hitachi/Bosch/Continental [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Software coverage for Nissan UDS applications using Hitachi, Bosch or Continental ECUs.
Mitsubishi EDC17CP52/EDC7C4/EDC16C31 [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Software coverage for Mitsubishi EDC17CP52, EDC7C4 and EDC16C31 ECU applications.
Isuzu Denso [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.
1. ECU identification.
2. Full-flash reading and writing on the bench.
3. Calibration writing through OBD.
4. Reading and clearing diagnostic trouble codes.
5. Checksum recalculation.
Master — Isuzu Transtron NO READ [WR/ID/CK/ER]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Processor coverage: SH7058, SH7059, SH72533 and SH72544.

Engine examples reported by the manufacturer: 4HK1, 4JJ1, 6UZ1, 4JK1 and 6HK1.

This is the Master activation for the Isuzu Transtron NO READ module.
Slave — Isuzu Transtron [WR/ID/CK/ER]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

This is the Slave activation for the Isuzu Transtron module.
Isuzu UDS 4JJ3 TC265D [WR/ID/CK/ER/VR]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

The Isuzu UDS 4JJ3 TC265D module operates on the bench and through OBD2.
Master — Isuzu UDS 4JJ3 TC265D [WR/ID/CK/ER/VR]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes; Virtual reading.

The Master activation can encrypt files for Module 86.

It includes the corresponding Normal-version functions, including checksum calculation, and supports encryption for an individual key or a group of keys.
Ford PowerStroke TCM [WR/ID/CK/ER]

Scope: Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

This module provides tuning functions for the automatic-transmission controller known internally as Power Stroke. Listed Ford applications include F450, F350, F250, Explorer, Edge and Territory.
Ford SID211 OBD2 [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

This module covers SID211 ECU tuning on Ford Transit, Ranger and Tourneo Connect vehicles with the 2.0L EcoBlue diesel engine.
Ford Continental SID208/SID209 OBD [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Communication uses the diagnostic OBD2 port. Reading retrieves the complete flash image; writing is limited to calibration data.
Suzuki MH8610 CAN [RD/WR/ID/CK/ER]

Scope: Read full flash image and calibration data; Write full flash image and calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

CAN reading and writing are supported, including reading the full flash image. The English catalog also lists reading and writing the complete processor dump over CAN.
Master — Kawasaki MH8610 [RD/WR/ID/CK]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation.

Master software activation for Kawasaki MH8610 ECU applications.
Slave — Kawasaki MH8610 [WR/ID]

Scope: Write full flash image; ECU identification.

Slave software activation for Kawasaki MH8610 ECU applications. The listed functions are ECU identification and full-image writing.
Mazda Mitsubishi MH8501 CAN Recovery [ID]

Scope: ECU identification.

CAN-recovery software activation for Mazda Mitsubishi MH8501 ECUs.
Nissan Hitachi SH72531 EV/HEV [RD/WR/ID/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Read and clear diagnostic trouble codes.

Software coverage for Nissan Hitachi SH72531 EV/HEV applications.
Nissan Hitachi/Bosch RE5 TCM [RD/WR/ID/CK/ER]

Scope: Read full flash image; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Software coverage for Nissan Hitachi/Bosch RE5 transmission control modules.
Master — Nissan Hitachi SH72533/SH72543 [RD/WR/ID/CK/ER/EE]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation; Read and write EEPROM; Read and clear diagnostic trouble codes.

The Master module supports cloning Gen1 and Gen2 ECUs and encrypting firmware for compatible Slave keys.
Slave — Nissan Hitachi SH72533/SH72543 [RD/WR/ID/CK/ER/EE]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation; Read and write EEPROM; Read and clear diagnostic trouble codes.

This Slave module must be paired with a compatible Master key.

Reading produces BIN files. Writing accepts encrypted ENCR files prepared through the Master workflow; arbitrary BIN files cannot be written with this Slave activation.
Nissan Hitachi SH72533/SH72543 [RD/WR/ID/CK/ER/EE]

Scope: Read full flash image; Write full flash image; ECU identification; Checksum calculation; Read and write EEPROM; Read and clear diagnostic trouble codes.

The standard module supports cloning of Gen1 and Gen2 Nissan Hitachi SH72533/SH72543 ECUs.
Nissan Hitachi SH72531 [RD/WR/ID/CK/ER/EE]

Scope: Read full flash image; Write full flash image; ECU identification; Read and clear diagnostic trouble codes; Read and write EEPROM; Checksum calculation.

The module provides ECU cloning, renewal to a new-ECU state and correction of fault P161F.
Isuzu Delphi [RD/WR/ID/CK/ER]

Scope: Read calibration data; Write calibration data; ECU identification; Checksum calculation; Read and clear diagnostic trouble codes.

Software coverage for Isuzu Delphi ECU applications.
Denso Gen2 MPC5746R 1N83M (Test) [RD/WR/CK/EE]

Scope: Read full flash image; Write full flash image; Checksum calculation; Read and write EEPROM.

Software coverage for Denso Gen2 MPC5746R 1N83M applications. The manufacturer marks this module as a test release.
Slave — Nissan Hitachi SH72531 HV/EV [RD/WR/EE]

Scope: Read full flash image; Write full flash image; Read and write EEPROM.

This Slave module provides ECU cloning, renewal to a new-ECU state and correction of fault P161F for the listed Nissan Hitachi SH72531 HV/EV applications.
Isuzu M32176 TCM [ID/CK/ER/VR]

Scope: ECU identification; Read and clear diagnostic trouble codes; Virtual reading; Checksum calculation.

Software coverage for Isuzu M32176 transmission control modules.

Product information adapted from the official MMC Flash catalog and the manufacturer’s software-update article.

MMC Flash USB Dongle

Description

Package contents

Requirements

Sold separately

Notes

Modules and supported functions

Cart
